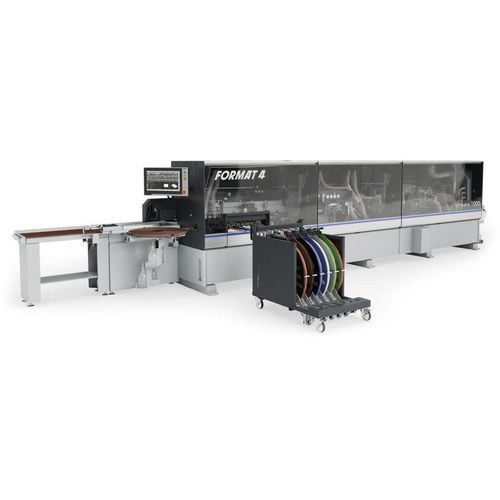

Automatic edge-banding machine tempora F1000 performance

for woodfor panelswith glue applicator

Overview
The new Format4 tempora F1000 sets new standards in comprehensive edge processing, combining durability, precision and efficiency. Its long, stable, large-dimensioned machine frame ensures exceptionally smooth running of all units, highest adjustment precision and extended service life even in multi-shift operation. The F1000 is available in equipment packages Classic, Professional and Performance to match operational requirements.

Key features

• Belt feed drive on the upper pressure bar for gentle handling of surface-sensitive materials and uniform pressure distribution across the workpiece length.
• Centric edge jointing unit with powerful motors and automatic centric adjustment to the workpiece height to avoid one-sided wear.
• Top-mounted, application-controlled glue pot with integrated drain and cleaning function for faster heat-up and easier maintenance. Teflon coated pot with cartridge heater monitoring.
• Completely redesigned corner rounding unit with CNC-controlled positioning axes and patented multi-radius router cutters for uniform edge radius, also on thin edges.
• Variants/packages: tempora F1000 Classic, Professional, Performance (different unit configurations and feed speed ranges).

Control & Automation

• 18" smartouch control system with e-motion (network-capable): unlimited memory for user-defined edge programs; maintenance plan and linear meter counter; intuitive representation of units and functions; selection and precise fine adjustment of motorized positioning-controlled units (adjustment accuracy 1/100 mm / 0.0003 in); glue temperature setting with automatic temperature reduction in standby.
• Automation platform: e-motion for motorized, precise adjustments and integrated process control (workpiece height adjustment, feed rulere, etc.).

Glue & Application

• Top-mounted glue pot: Teflon coating, capacity approx. 0.6 kg for EVA, PO and PUR hotmelt glues.
• Fine-adjustable textured glue roller operating in application-controlled manner; synchronized and counter-rotation function to clean the glue roller during processing; quick-change system with plug, integrated rinsing/cleaning and silicone drip tray.

Units & Performance

• Edge jointing unit: two powerful motors (3.7 kW each, 12,000 rpm), two diamond jointing cutters D=100 mm, H=49 mm; centric alignment to workpiece height; routers usable in synchronized or counter-rotation mode; cutter height/depth adjusted manually with digital meters; linear guides for precision and durability.
• Corner rounding unit: two independent motors (12,000 rpm), processing of face and longitudinal edges with edge thickness 0.4–3.0 mm and workpiece heights 10–60 mm; patented multi-radius router (R = 2 mm) and four servo axes for motor-driven positioning and fine adjustment in 0.01 mm increments; pneumatic engagement/disengagement and high-quality linear guides.
• Feed options: chain feed (classic/professional) 12 + 20 m/min (39.3 + 65.6 ft/min); performance variant 12–25 m/min (39.3–82 ft/min). Rubberized support pads with quick-change; automatic lubrication of guide tracks; round and flat shaft guides for straight feed.
• Upper pressure bar: torsion-resistant aluminium tension profile; power-adjustable workpiece height 8–60 mm (0.3–2.3 in) set via e-motion; overhead belt feed protects material by gentler transport and reduces abrasion/cleaning effort; workpiece distance control with signal light.
• Workpiece feed & infeed guide: feed rulere e-motion enabling continuous chip removal 0–3 mm; power position control shown on smartouch; chip removal can be automatically linked to edge thickness.

Additional options & handling aids

• Air cushion table for easy and gentle handling of large/surface-sensitive workpieces (standard supporting surface 1050 x 400 mm; expandable to 2000 x 400 mm) with powerful blower motor.
• Additional workpiece support for floor mounting incl. swivel arm (optional) with roller rail and adjustable position.
• Mitre fence for narrow parts (optional) for precise handling of short/narrow workpieces (120–700 mm).
• Automatic edge feeder incl. motorized clamp (optional) for fast edge material changing and motorized clamp positioning.
• edgeControl (optional): wireless edge and workpiece measurement via Bluetooth with transfer to smartouch for automatic calibration and selection from a measurement log.
• Wireless barcode scanner (optional) for fast transfer of generated work programs to the control system.

Caractéristiques / spécifications techniques

• Installation length: 8000 mm
• Edge thickness range: 0.4 – 12 mm
• Workpiece height range: 8 – 60 mm
• Feed speed (variant-dependent): Classic/Professional: 12 + 20 m/min (39.3 + 65.6 ft/min); Performance: 12 – 25 m/min (39.3 – 82 ft/min)
• Glue pot: top-mounted, application-controlled, Teflon coated, capacity approx. 0.6 kg; suitable for EVA, PO and PUR hotmelt glues; integrated rinsing/cleaning and drain
• Automation: e-motion (motorized adjustments, power position control, integration with smartouch)
• Corner rounding unit: CNC controlled, 2 motors @ 12,000 rpm, multi-radius router (R = 2 mm), motor-driven positioning with 0.01 mm steps
• Edge jointing unit: 2 x 3.7 kW motors, 12,000 rpm, diamond cutters D=100 mm H=49 mm, centric adjustment
• Top pressure: belt feed (overhead belt) for uniform pressure distribution and gentle transport
• Complete edge processing capability: premilling, trimming (multifunction trimming units), radius scraping, twin-engine linear end trimming unit (depending on specification package)
• Control: 18" smartouch control system with network connection; unlimited program memory; maintenance plan & linear meter counter; 0.01 mm/0.0003 in fine adjustment capability from control panel
