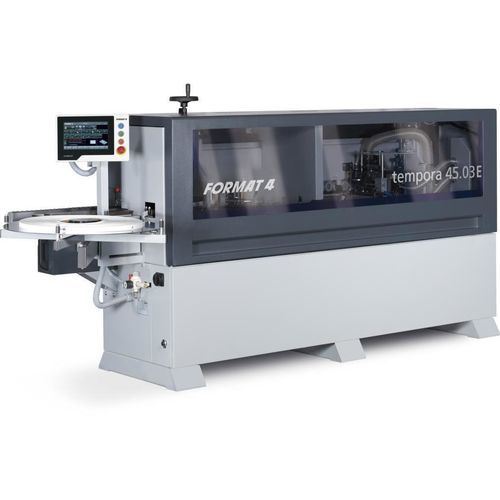

Automatic edge-banding machine tempora F400 45.03E

for panelswith glue applicatorwith hot-melt glue applicator

Overview
The tempora F400 45.03E is an automatic edgebander designed for fast, flexible and repeatable processing of straight panels up to 45 mm thick. The machine combines a heavy-duty base frame and precise dust extraction with modular units and smart control to minimize setup time and support continuous industrial production.

Highlights

• Continuous high performance for industrial production
• Modular configuration and customer-specific packages for optimized production
• Solid machine base with precise dust extraction
• Smartouch control with m-motion/x-motion functionality for fast setup and repeatability
• Glue applicator compatible with EVA and PUR, with easy-clean options
• Optional units: premilling, end trimming, multifunctional trimming, infrared lamp, glue scraping, storEdge edge storage

Variants & key model data

• tempora F400 45.03L — Installation length: 4,230 mm; Tape thickness: 0.4–3 mm; Workpiece thickness: 8–45 mm; Smartouch 10.4" control; corner rounding unit available; EVA/PUR glue applicator (easy-clean).
• tempora F400 45.03 — Installation length: 3,600 mm; Tape thickness: 0.4–3 mm; Workpiece thickness: 8–45 mm; Smartouch 10.4" control; 3 slots for finisher units; EVA/PUR glue applicator (easy-clean).
• tempora F400 45.03E — Installation length: 3,600 mm; Tape thickness: 0.4–3 mm; Workpiece thickness: 8–45 mm; Smartouch 10.4" control; 3 slots for finisher units; EVA/PUR glue applicator (easy-clean).

Control & Operation
The 10.4" smartouch control with m-motion enables quick selection and monitoring of aggregates, storage of user-defined programs and fast repeatable setups. Key functions include:

• Storage and loading of user programs and unlimited edge program memory
• Adjustable, intuitive display of aggregates and parameters
• Glue parameter setting for EVA or PUR with temperature control and automatic standby reduction
• Order-specific selection of aggregates and fine distance adjustments
• Maintenance plan, clear text error messages and odometer for total metres processed
• Network connection and x-motion Plus option for advanced program generation

Glue & Edge Feeding
Teflon-coated gluepot (1.5 kg) supports PUR and EVA adhesives and supplies approx. 375 m of edge material on a 19 mm panel. Warm-up time ~10 minutes. Options include scraper cleaning for fast glue changes. Edge feed accepts continuous edging from 0.4 mm to 3.0 mm and panel thicknesses up to 45 mm.

Machining & Finishing Units

• Premilling: Two counter-rotating, individually adjustable premilling units with diamond-coated spiral cutters for tear-free edges on laminated panels.
• Pressure zone: Teflon-coated aluminium roller and rubber contact roller with adjustable contact pressure and m-motion positioning.
• End trimming: Linear and inclined traverse end trimming with high-frequency motors (12,000 rpm) for precise horizontal and vertical cuts.
• Multifunctional trimming: Independent top and bottom trimming units (12,000 rpm) for flush, radius or bevel finishes; linear guides for precision and low maintenance.
• Radius and surface scraping: Remove trimming remnants and glue residues for smooth surfaces.
• Infrared lamp: Pre-heats edge surface to improve adhesion on cold workpieces.

Technical specifications

• Series: tempora F400
• Tape thickness: 0.4–3 mm
• Workpiece thickness range: 8–45 mm
• Installation length (examples): 3,600 mm and 4,230 mm depending on variant
• Control: smartouch 10.4" with m-motion; x-motion Plus optional
• Gluepot capacity: 1.5 kg (Teflon-coated) — warm-up ~10 minutes
• Glue types: EVA and PUR (easy-clean options; changeable gluepot and scraper cleaning available)
• Premilling/trimming motors: High-frequency motors (12,000 rpm)
• Corner rounding capacity: 1 9/16" (available on specific variants)
• Edge feed: Continuous edging film 0.4–3.0 mm; panel thickness up to 45 mm
• Optional packages: nesting package, storEdge edge storage, multifunctional trimming, pressure zone, infrared lamp, glue scraping
