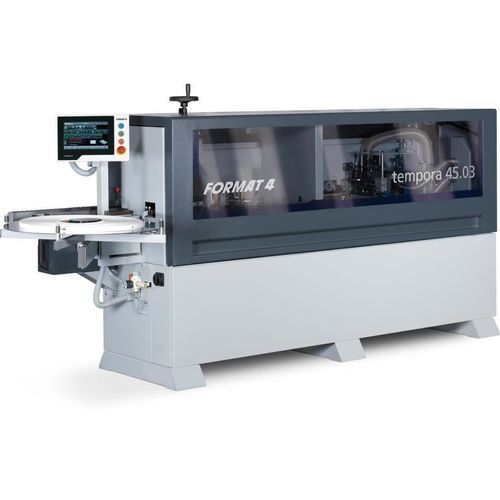

Panel edge-banding machine tempora F400 45.03

with glue applicator

Overview
The tempora series focuses on reducing setup and processing time for industrial edge banding. Reworked machining units, a solid machine base frame and precise dust extraction are designed for continuous operation. The smartouch control with m-motion and optional x-motion Plus enables repeatable settings, program generation and reduced setup time.

Series concept
The tempora range is configurable to customer requirements with selectable machining units and the option to add the x-motion Plus package. Multiple installation lengths and model variants are offered (examples: tempora F400 45.03, tempora F400 45.03L, tempora F400 45.03E).

Highlights

• Continuous industrial operation capability
• Configurable layouts to match production requirements
• Solid construction with industrial-grade components and precise dust extraction
• Modular configuration packages (m-motion, x-motion Plus)
• Operator-oriented controls and precise mechanical adjustments

Control & user interface

• smartouch control with m-motion (10.4" touchscreen; optional up to 15")
• Unlimited storage for user-defined programs
• Intuitive display of aggregates and functions
• Load and store working programs; order-specific selection of aggregates
• Fine adjustment of distance parameters, maintenance schedule, clear text error messages, odometer for total metres processed
• Glue temperature control for EVA or PUR and automatic temperature reduction in standby

Glueing & edge feed

• Glue applicator handles EVA and PUR; easy-clean design
• Optional Teflon-coated gluepot (1.5 kg) — short warm-up (~10 minutes) and quick readiness; optional scraper cleaning unit for glue-type changes
• Edge feed supports continuous edging tape from 0.4 mm to 3.0 mm for panels up to 45 mm thickness

Available machining units and options (examples)

• Premilling / edge jointing units with diamond-coated spiral cutters for tear-free edges
• Infrared lamp to improve edge adhesion on cold workpieces
• Pressure zone with Teflon-coated aluminium roller and rubber contact roller for minimal visible glue joint
• Linear end trimming and end trimming with inclined traverse for precise end cuts
• Multifunctional top and bottom trimming unit for flush, radius or bevel trimming (high-frequency motors, linear guides)
• Glue scraping and radius scraping units for surface finish
• Optional storEdge edge storage system for organized edge material handling

Notes on variants

• tempora F400 45.03 — compact variant with smartouch control and multiple finisher slots
• tempora F400 45.03L — longer installation length (L = long) for extended configurations
• tempora F400 45.03E — variant with additional equipment options

Specifications

• Model series: tempora F400
• Installation length (example 45.03): 3,600 mm
• Installation length (example 45.03L): 4,230 mm
• Edge thickness: 0.4–3 mm
• Workpiece thickness: 8–45 mm
• Control unit: smartouch 10.4" touchscreen (optional 15") with m-motion / x-motion Plus
• Corner rounding / finisher capacity: depends on configuration
• Glue applicator: supports EVA and PUR; easy-clean; optional changeable gluepot
• Gluepot capacity (option): 1.5 kg (~375 m of edge on a 19 mm panel)
• Premilling: two counter-rotating, activation-controlled and individually adjustable premilling units with diamond-coated spiral cutters
• End trimming motors: high-frequency motors (12,000 rpm)
• Finisher slots: up to 3 (model dependent)
