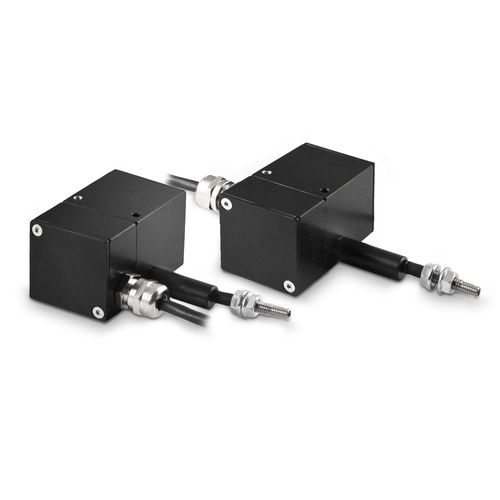

Draw-wire position sensor PFAS600

potentiometeranalogmetal

The PFAS600 - PFAS1000 - PFAS2000 - PFAS2500 - PFAS3200 - PFAS4200 are wire potentiometric position transducers that converts a linear motion into a resistance variation. • They contains a precision rotary potentiometer operated by winding or unwinding the stainless steel wire. • The main features of these transducer are the extremely compact anodized aluminum case. • Possibility to choose the position of the cable output. • Available version with analogue output ‘T’: I = 4­-20 mA or V = 0-­10Vdc. • Connected to a display or an electronic positioner (for example V3P, V4P, VE6P, P3X) it provides a simple and effective system to measure linear motions. • They main applications are on cranes, rolling shutters, hydraulic and pneumatic piston, automatic wood/ marble/ glassworking machinery, etc. ➜ Special features of these transducers are their low cost and easy assembling.
