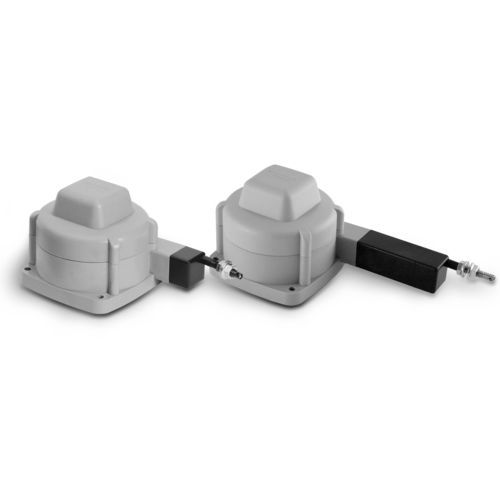

Draw-wire position sensor PF1000, PF2000
potentiometeranalogmetal

draw-wire position sensor
draw-wire position sensor
Add to favorites
Compare this product


Characteristics

Type
draw-wire
Technology
potentiometer
Output signal
analog
Measurement object
metal

Description

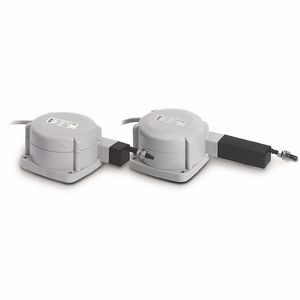

The PF1000, PF2000 are wire potentiometric position transducers that turn a linear motion into a resistance variation. They are made of a precision rotating potentiometer operated by a winding or unwinding stainless steel wire. The transducers are available with a stroke of 1100 mm for PF1000, 2200 mm for PF2000. Special features of these transducers are their low cost and easy assembling. Linked together a display or an electronic positioner (for example V3P, V4P, VE6P, P3X) it supplies a simple, effective system to measure linear or angular motions on machine tools, automatic-,wood-, marble-, glassworking machinery, cylindrical-, hydraulic-, pneumatic stroke, shutiers etc. These transducers are carried out in self-extinguishing, shock-proof cases which are solvents-, petrol-, greases-, oils- proof.
