Linear position sensor P series

potentiometeranalogmetal

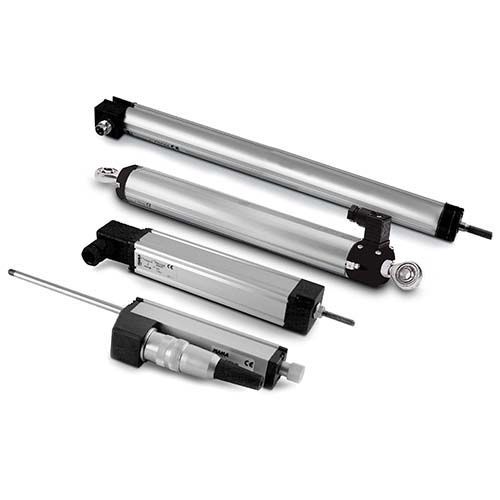

Linear potentiometer with slider drived by a shaft, which processes linear shifting in change resistance. Available versions: PAK: aluminium case, mechanical anchor, dragging with shaft thread M6, strokes from 50 to 900 mm, connector 4 poles complying the DIN43650 norm (spherical joint M6 on request). PY2: aluminium case, mechanical anchor, feeler shaft with double bearings and recall spring, push rod with threaded stem M2,5 and an inox steel sphere, connector 5 poles complying the DIN43322 norm. Strokes from 25 to 100 mm. PS: aluminium case, anchor and self-alligned mechanical dragging on 2 spherical joints, max. motion angle to ±30°, strokes from 50 to 750 mm, connector 4 poles complying the DIN43650 norm. PSX: aluminium housing with stainless steel shaft, easy mounting by the means of back-lash free pivot heads with a large angle of free movement up to ±12,5°. Resolution 0,01mm and linearity up to ±0,05%. Heavy duty and compact dimensions, makes this sensor suitable for use in environments with humidity, oil, dust, etc. This sensor is particularly recommended for mobile applications as in mechanical engineering, testing benches, etc. ➜The combining with a display (for ex. V3P, V4P, VE6P), makes of this device an economical, simple and effective system for the measuring of shiftings on machine tools, automatic-, wood-marble-glassworking machinery, etc., with an accuracy not higher than ±0,1 mm.
