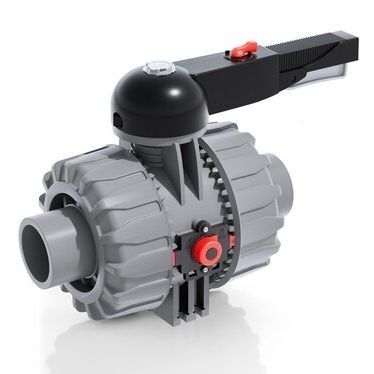

Ball valve VKD series
levercontrolfor water

ball valve
ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
lever
Function
control
Media
for water
Body
flange, threaded, weld, PTFE, PVC, PP, PVDF
Applications
for industrial applications
Number of channels
2-way
Other characteristics
ISO, standard
DN

Min.: 65 mm
(2.559 in)

Max.: 100 mm
(3.937 in)

Pressure

16 bar
(232.1 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 140 °C
(284 °F)

Description

FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs required by industrial applications. This valve is also equipped with a customisable Labelling System. Connection system for solvent weld, threaded and flanged joints • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise axial force effects • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites • Option of dismounting downstream pipes with the valve in the closed position • Full bore ball with high surface finish • Integrated bracket for valve anchoring • Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard bore PP-GR flange MAIN FEATURES: HIPVC ergonomic multifunctional handle for quick operation, lock and graduated adjustment in 10 positions. Possibility of inhibiting rotation with a lock Customisable Labelling System: LCE module made of a transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to specific needs DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation Double stem with double O-Rings for ball centring and operating torque reduction
