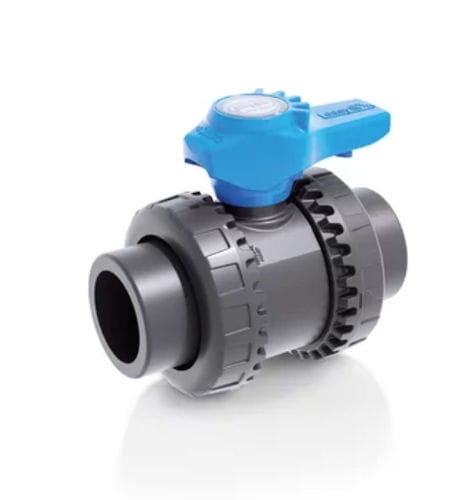

Ball valve VEE series
manualcontrolfor water

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
manual
Function
control
Media
for water
Body
threaded, weld, PVC-U
Applications
for food applications, for water
Number of channels
2-way
Other characteristics
ISO, with operating handle
DN

Max.: 50 mm
(1.969 in)

Min.: 10 mm
(0.394 in)

Pressure

16 bar
(232.1 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: 0 °C
(32 °F)

Description

FIP and Giugiaro Design designed and developed VEE Easyfit, the innovative True Union ball valve with union nut tightening control, that permits simple and safe installation for reliable service in time. The valve is specifically designed for water conveyance applications. • Patented Easyfit system: innovative mechanism based on the principle of the bevel gear pair that controls valve union nut rotation during installation. • Connection system for solvent weld and threaded joints • Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools • PN16 True Union valve body made for PVC-U injection moulding and European Directive 97/23/EC compliant for PED pressurised equipment. ISO 9393 compliant test requirements • Short face to face dimension according to international regulation ISO 7508 series III and European regulation EN 1452 ”short” and fully interchangeable with previous VE series models • Option of dismounting downstream pipes with the valve in the closed position • Floating full bore ball with high surface finish made in CNC work stations to achieve precise dimensional tolerance and high surface finish
