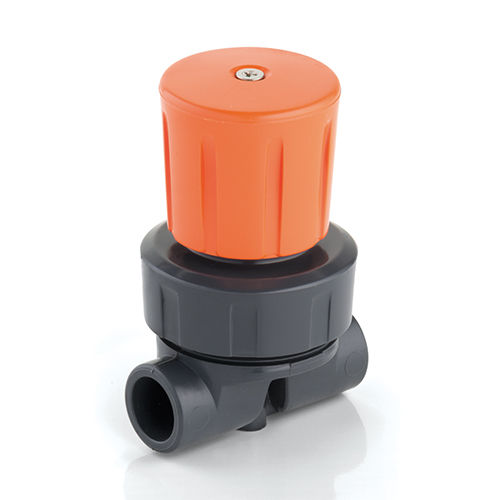

Miniature valve VMIVdiaphragmmanualshut-off
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- manual
- Function
- shut-off, regulating
- Media
- for water
- Body
- threaded, weld, miniature
- Applications
- for food applications, laboratory
- Material
- EPDM, PVC
- Other characteristics
- compact
- DN
8 mm
(0.315 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description
Mini-diaphragm valve with female ends for solvent welding, metric series.
The VM mini-valve is used to shut-off and regulate fluid flow and is characterised by its reduced size.
Technical features :
- Connection system for solvent weld and threaded joints
- Extremely compact dimensions
- Can be installed in any position
- Valve material compatibility (PVC-U) and elastomer seal elements (EPDM), with water, - - -- -- drinking water and other food substances as per current regulations
- Specifically designed for laboratory applications or for sampling purposes
