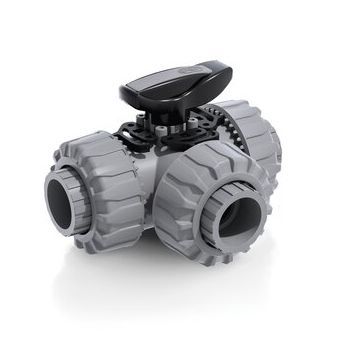

Ball valve TKD series
manualmixingfor water

ball valve
ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
manual
Function
mixing
Media
for water
Body
flange, threaded, seat, weld, PVC-U, PP
Applications
for industrial applications
Number of channels
3-way
Other characteristics
ISO, with operating handle
DN

Min.: 10 mm
(0.394 in)

Max.: 50 mm
(1.969 in)

Pressure

16 bar
(232.1 psi)

Temperature

Min.: 0 °C
(32 °F)

Max.: 100 °C
(212 °F)

Description

FIP has developed a TKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. TKD is a True Union diverting and mixing ball valve that meets the most stringent needs required in industrial applications. • Connection system for solvent weld, threaded and flanged joints • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise axial force effects • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites • Option of dismounting downstream pipes with the valve in the closed position • High surface finish stem with double O-Ring and double connection key to the ball, equipped with visual ball position indicator for correct handle installation • Integrated bracket for valve anchoring • Possibility of installing pneumatic and/or electric actuators thanks to the robust anchor tower for easy and quick automation using the Power Quick module (optional)
