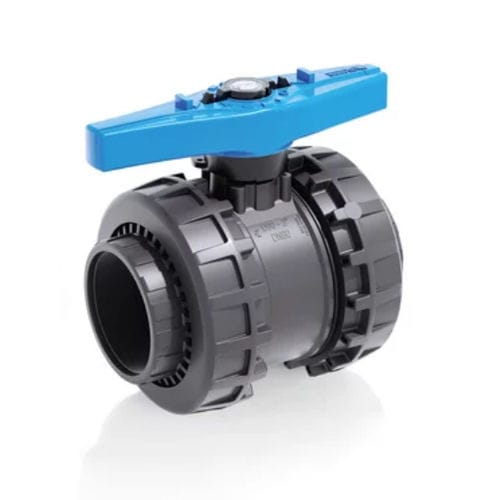

Ball valve VEE series
manualcontrolfor water

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
manual
Function
control
Media
for water, for liquid food products and beverages
Body
threaded, weld, PVC-U
Applications
for food applications
Number of channels
2-way
Associated function
service
Other characteristics
ISO, with operating handle
DN

Min.: 65 mm
(2.559 in)

Max.: 100 mm
(3.937 in)

Pressure

16 bar
(232.1 psi)

Temperature

Min.: 0 °C
(32 °F)

Max.: 60 °C
(140 °F)

Description

FIP and Giugiaro Design designed and developed VEE Easyfit, the innovative True Union ball valve that permits simple and safe installation for reliable service over time. The valve is specifically designed for water conveyance applications. • Patented Easyfit system: innovative mechanism that lets you use the quick release handle to adjust the ball carrier. • Connection system for solvent weld and threaded joints • Valve material compatibility (PVC-U) with water, drinking ware and other food substances according to current regulations • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools • PN16 True Union valve body made for PVC-U injection moulding and European Directive 97/23/EC compliant for PED pressurised equipment. ISO 9393 compliant test requirements • Valve body with built-in anchoring frame for the special Power Quick Easyfit module dedicated to the installation of pneumatic and electric actuators or accessories • Option of dismounting downstream pipes with the valve in the closed position • Floating full bore ball with high surface finish made in CNC work stations to achieve precise dimensional tolerance and high surface finish
