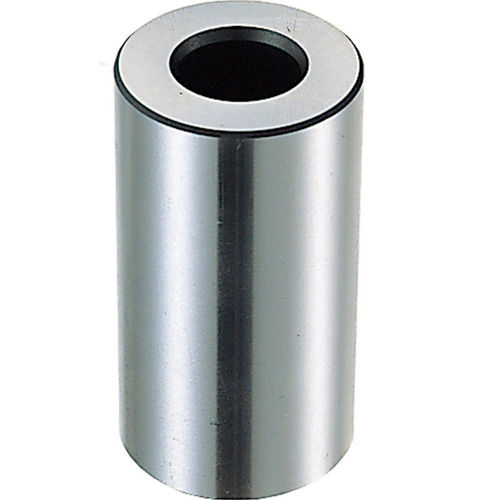

Locating sleeve BJ400 series

Product overview
These cylindrical locating receivers are designed for use with BJ701 locating pins to locate a component and provide simultaneous fastening using a single locating screw hole. Manufactured from 1050 steel, each receiver is hardened, precision ground and finished with black oxide for corrosion resistance and consistent fit.

Available part options (table)
ID | SKU | Part Number | D (mm) | D1 H7 (mm) | D2 (mm) | H (mm) | H1 (mm) | Proper Locating Screws
142623 | BJ400-12025 | BJ400-12025 | 40 | 12 | 20 | 25 | 12 | BJ701-12045
142624 | BJ400-12050 | BJ400-12050 | 40 | 12 | 20 | 50 | 12 | BJ701-12045
128639 | BJ400-12075 | BJ400-12075 | 40 | 12 | 20 | 75 | 12 | BJ701-12045
142625 | BJ400-16050 | BJ400-16050 | 50 | 16 | 26 | 50 | 15 | BJ701-16055
128643 | BJ400-16075 | BJ400-16075 | 50 | 16 | 26 | 75 | 15 | BJ701-16055
128645 | BJ400-16100 | BJ400-16100 | 50 | 16 | 26 | 100 | 25 | BJ701-16065
142626 | BJ400-16125 | BJ400-16125 | 50 | 16 | 26 | 125 | 25 | BJ701-16065

Media
Specifications and dimensional drawings are available as a downloadable PDF product specification sheet.

Technical specifications

• Intended use: Cylindrical locating receiver for BJ701 locating pins; enables locating and fastening a component with one locating screw hole.
• Material: 1050 steel.
• Surface finish: Black oxide.
• Treatment: Hardened and precision ground for repeatable locating accuracy.
• Available part numbers and nominal dimensions listed above (D, D1 H7, D2, H, H1) with corresponding recommended locating screw PN.
