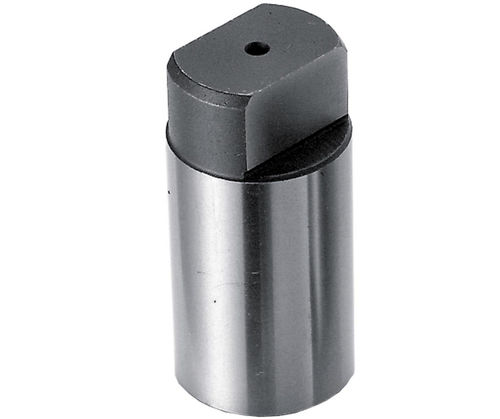

Tapped shank locating pin BJ710 series

Product Overview
These locating keys are used to locate a tooling plate on a machine table with 30G6 locating holes. Made from 1045 steel, hardened and precision ground with a black oxide finish.

Application
For tooling plates with 30G6 locating holes on the machine table.

Product Variants

• ID 142543 — SKU BJ710-14030 — Thread M6 x 1.00 (10 mm depth) — D 30 mm — D1 29 mm — L 64 mm — L1 15 mm — W 14 mm
• ID 142544 — SKU BJ710-18030 — Thread M6 x 1.00 (10 mm depth) — D 30 mm — D1 29 mm — L 64 mm — L1 15 mm — W 18 mm
• ID 142545 — SKU BJ710-20030 — Thread M6 x 1.00 (10 mm depth) — D 30 mm — D1 29 mm — L 64 mm — L1 15 mm — W 20 mm
• ID 142546 — SKU BJ710-22030 — Thread M6 x 1.00 (10 mm depth) — D 30 mm — D1 29 mm — L 64 mm — L1 15 mm — W 22 mm

Related product type

• Locating pins / Locating key
• For tooling plates with 30G6 locating holes

Characteristics / Technical specifications

• Model: BJ710
• Material: 1045 steel
• Heat treatment: Hardened
• Finish: Black oxide
• Manufacturing: Precision ground
• Thread (on variants): M6 x 1.00, 10 mm depth
• Common dimensions (across variants): D = 30 mm, D1 = 29 mm, L = 64 mm, L1 = 15 mm
• Key width (W) available: 14 mm, 18 mm, 20 mm, 22 mm
• Typical use: Locating tooling plates on machine tables with 30G6 holes
