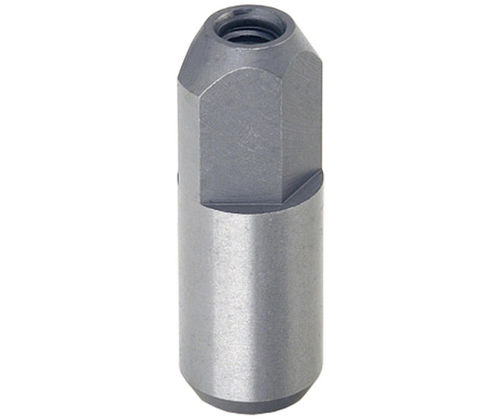

Locating pin BJ722

Product description
Diamond-style locating pins BJ722 are designed to accurately position and align fixtures and workpieces in machining and assembly operations. Manufactured from SK95 steel, each pin is hardened and precision ground to ensure repeatable locating performance and can be used as a hardened stop or fixture foot.

Applications

• Fixture and jig alignment in machining and assembly
• Precision positioning of workpieces on tooling plates
• Hardened stops and feet for fixtures

Product types

• BJ720 — Locating Pins — Round
• BJ722 — Locating Pins — Diamond

Part options

• M3X0.50 | D = 6 mm | L = 20 mm | L1 = 9 mm | L2 = 6 mm | L3 = 2 mm | W = 1.8 mm | Part no. BJ722-06001
• M3X0.50 | D = 8 mm | L = 25 mm | L1 = 11 mm | L2 = 6 mm | L3 = 3 mm | W = 2.2 mm | Part no. BJ722-08001
• M3X0.50 | D = 10 mm | L = 30 mm | L1 = 13 mm | L2 = 6 mm | L3 = 3 mm | W = 3.0 mm | Part no. BJ722-10001
• M5X0.80 | D = 12 mm | L = 34 mm | L1 = 14 mm | L2 = 10 mm | L3 = 4 mm | W = 3.5 mm | Part no. BJ722-12001
• M5X0.80 | D = 14 mm | L = 38 mm | L1 = 15 mm | L2 = 10 mm | L3 = 4 mm | W = 4.0 mm | Part no. BJ722-14001
• M5X0.80 | D = 16 mm | L = 42 mm | L1 = 16 mm | L2 = 10 mm | L3 = 4 mm | W = 5.0 mm | Part no. BJ722-16001
• M5X0.80 | D = 18 mm | L = 46 mm | L1 = 17 mm | L2 = 10 mm | L3 = 5 mm | W = 5.5 mm | Part no. BJ722-18001
• M5X0.80 | D = 20 mm | L = 47 mm | L1 = 17 mm | L2 = 10 mm | L3 = 5 mm | W = 6.0 mm | Part no. BJ722-20001
• M5X0.80 | D = 22 mm | L = 49 mm | L1 = 19 mm | L2 = 10 mm | L3 = 5 mm | W = 7.0 mm | Part no. BJ722-22001
• M5X0.80 | D = 25 mm | L = 49 mm | L1 = 19 mm | L2 = 10 mm | L3 = 5 mm | W = 8.0 mm | Part no. BJ722-25001

Media / Documents
Specifications sheet (PDF) available on request.

Accessories / Related items

• NKL — Pin extractor tool (slide hammer) for locator pin removal
• 02020, 031x, 03108, BJ401, BJ710 — related locating-pin variants and styles

Technical specifications

• Material: SK95 steel
• Finish / treatment: Hardened and precision ground
• Function: Accurate positioning and alignment of fixtures and workpieces; can be used as hardened stops or fixture feet
• Available thread sizes: M3 x 0.50, M5 x 0.80
• Available diameters and lengths: D = 6, 8, 10, 12, 14, 16, 18, 20, 22, 25 mm (see part options)
• Part numbers: BJ722-06001 to BJ722-25001
