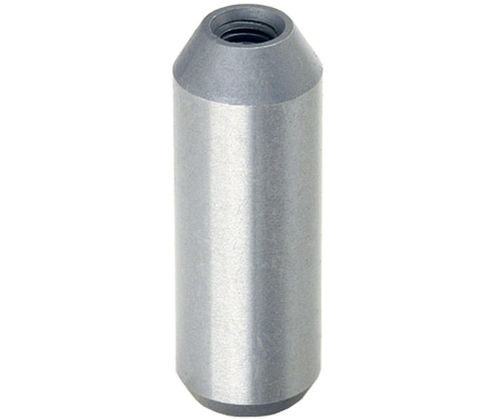

Tapped shank locating pin BJ720 series

Overview
These round locating pins are designed to accurately position and align fixtures and workpieces. Manufactured from SK95 steel, they are hardened and precision ground. They also serve as hardened stops or as fixture feet where required.

Product types

• BJ720 — Locating Pins — Round head
• BJ722 — Locating Pins — Diamond head

Part options

• ID 129782 — Part number BJ720-06001 — Thread M3X0.50 — D 6 mm — L 20 mm — L1 2 mm — L2 6 mm
• ID 129783 — Part number BJ720-08001 — Thread M3X0.50 — D 8 mm — L 25 mm — L1 3 mm — L2 6 mm
• ID 142547 — Part number BJ720-10001 — Thread M3X0.50 — D 10 mm — L 30 mm — L1 3 mm — L2 6 mm
• ID 142548 — Part number BJ720-12001 — Thread M5X0.80 — D 12 mm — L 34 mm — L1 4 mm — L2 10 mm
• ID 142549 — Part number BJ720-14001 — Thread M5X0.80 — D 14 mm — L 38 mm — L1 4 mm — L2 10 mm
• ID 142550 — Part number BJ720-16001 — Thread M5X0.80 — D 16 mm — L 42 mm — L1 4 mm — L2 10 mm
• ID 142551 — Part number BJ720-18001 — Thread M5X0.80 — D 18 mm — L 46 mm — L1 5 mm — L2 10 mm
• ID 142552 — Part number BJ720-20001 — Thread M5X0.80 — D 20 mm — L 47 mm — L1 5 mm — L2 10 mm
• ID 142553 — Part number BJ720-22001 — Thread M5X0.80 — D 22 mm — L 49 mm — L1 5 mm — L2 10 mm
• ID 142554 — Part number BJ720-25001 — Thread M5X0.80 — D 25 mm — L 49 mm — L1 5 mm — L2 10 mm

Media / Documents
Specifications PDF available (product specification sheet).

Technical specifications

• Material: SK95 steel
• Condition: hardened and precision ground
• Styles: round head (BJ720) or diamond head (BJ722)
• Typical uses: accurate positioning and alignment of fixtures and workpieces; can be used as a hardened stop or as fixture feet
• Available diameters (D): 6, 8, 10, 12, 14, 16, 18, 20, 22, 25 mm
• Thread types by range: M3X0.50 for D 6–10 mm; M5X0.80 for D 12–25 mm
• Available overall lengths (L) shown per part option above
