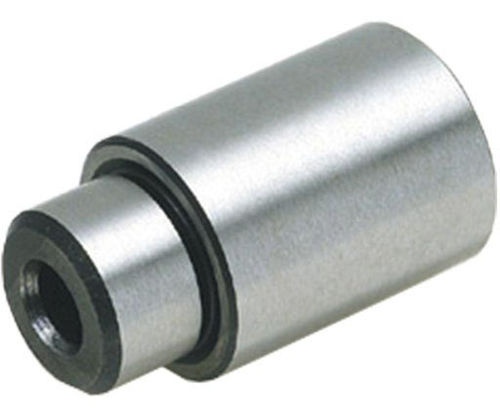

Hexagon socket locating pin BJ401 series

tapped shank

Description
These edge locating pins are designed to accurately position and align fixtures and workpieces. They can also serve as hardened stops or as feet for fixtures. The round locating pin is secured with a socket head cap screw. Manufactured from SK95 steel, hardened and precision ground with a black oxide finish.

Part options

• BJ401-04001 — SKU: 142529; Thread: M4; D: 10 mm; D1: 15 mm; H: 10 mm; H1: 8 mm; H2: 5 mm
• BJ401-04002 — SKU: 142530; Thread: M4; D: 10 mm; D1: 15 mm; H: 20 mm; H1: 8 mm; H2: 5 mm
• BJ401-06001 — SKU: 142531; Thread: M6; D: 15 mm; D1: 20 mm; H: 15 mm; H1: 10 mm; H2: 7 mm
• BJ401-06002 — SKU: 142532; Thread: M6; D: 15 mm; D1: 20 mm; H: 25 mm; H1: 10 mm; H2: 7 mm
• BJ401-10001 — SKU: 142533; Thread: M10; D: 20 mm; D1: 30 mm; H: 15 mm; H1: 12 mm; H2: 11 mm
• BJ401-10002 — SKU: 142534; Thread: M10; D: 20 mm; D1: 30 mm; H: 35 mm; H1: 12 mm; H2: 11 mm
• BJ401-12001 — SKU: 142535; Thread: M12; D: 25 mm; D1: 40 mm; H: 20 mm; H1: 15 mm; H2: 13 mm
• BJ401-12002 — SKU: 142536; Thread: M12; D: 25 mm; D1: 40 mm; H: 40 mm; H1: 15 mm; H2: 13 mm

Technical specifications

• Model: BJ401
• Style: Edge locating pin — cylinder
• Material: SK95 steel
• Heat treatment / Finish: Hardened, precision ground, black oxide finish
• Mounting: Round pin mounted and secured with a socket head cap screw
• Main uses: Positioning and aligning fixtures and workpieces; can be used as a hardened stop or as fixture feet
• Available thread sizes: M4, M6, M10, M12
• Available variant dimensions: see part options above
