Locating sleeve BJ724

Description

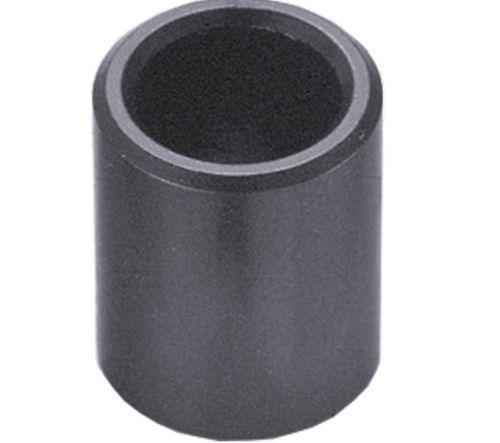

Locating bushing for fixture plates designed for use with an M8 socket head cap screw. Precision-ground quenched and tempered SK95 steel with a black oxide finish, intended to ensure accurate location and repeatability in assembly and machining fixtures.

Part Options / Table

• Part Number: BJ724-08001
• SKU / Item ID: 142588
• Overall Diameter (D): 12 mm
• Inside Diameter (D1): 8.5 mm
• Overall Height (H): 15 mm

Product Types

• Locating bushings — For M8 size components

Technical specifications

• Model: BJ724
• Selected Part: BJ724-08001
• Application: Locating a component on a fixture plate using an M8 socket head cap screw
• Material: Quenched and tempered SK95 steel
• Finish: Precision ground with a black oxide finish
• Dimensions: D 12 mm, D1 8.5 mm, H 15 mm
• SKU / Item ID: BJ724-08001 / 142588
