Tapped shank locating pin BJ723 series

Description

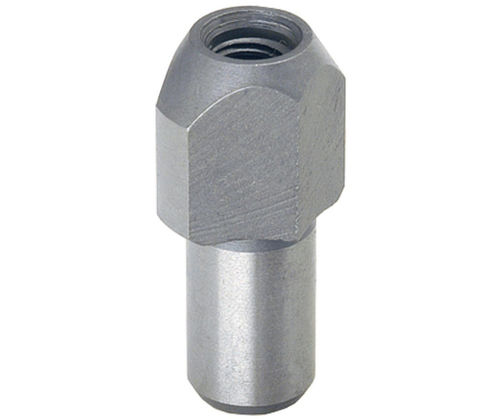

Diamond-style locating pins BJ723 are designed to provide precise positioning and alignment of fixtures and workpieces. They serve as hardened locating points and may be used as stops or feet on fixtures. Manufactured from SK95 steel, each pin is hardened and precision ground for consistent fit and repeatability.

Product types

• BJ721 — Locating pins — Round head, with shoulder
• BJ723 — Locating pins — Diamond head, with shoulder

Part options

• BJ723-08021 — M3×0.50 — D 5 mm / D1 8 mm / L 10 mm
• BJ723-10021 — M3×0.50 — D 7 mm / D1 10 mm / L 11 mm
• BJ723-12021 — M5×0.80 — D 8 mm / D1 12 mm / L 13 mm
• BJ723-14021 — M5×0.80 — D 10 mm / D1 14 mm / L 15 mm
• BJ723-16021 — M5×0.80 — D 12 mm / D1 16 mm / L 18 mm
• BJ723-18021 — M5×0.80 — D 13 mm / D1 18 mm / L 20 mm
• BJ723-20021 — M5×0.80 — D 14 mm / D1 20 mm / L 22 mm
• BJ723-22021 — M5×0.80 — D 16 mm / D1 22 mm / L 22 mm
• BJ723-25021 — M5×0.80 — D 18 mm / D1 25 mm / L 25 mm

Media
Specifications available in PDF (product specification sheet).

Technical specifications

• Material: SK95 steel
• Condition: Hardened and precision ground
• Head style: Diamond
• Feature: With shoulder (for positive locating and load transfer)
• Primary uses: Accurate positioning and alignment of fixtures and workpieces; can be used as hardened stop or as feet for fixtures
• Models: BJ723 (diamond head); related BJ721 (round head)
• Available thread sizes: M3×0.50, M5×0.80
• Available D (p6) diameters: 5, 7, 8, 10, 12, 13, 14, 16, 18 mm
• Corresponding D1 (h6) sizes: 8, 10, 12, 14, 16, 18, 20, 22, 25 mm
