Stop pin BJ214 series

Product Overview
Adjustable screw stop button designed for positioning and securing low-profile workpieces. Manufactured from alloy steel with a black oxide finish for improved surface durability and reduced glare.

Product Types

• BJ214 — Adjustable stops — Screw stop button — For low-profile workpieces

Part Options

• ID: 128458 | SKU: BJ214-08001 | Part Number: BJ214-08001 | T thread (mm): M8X1.25 | T1 thread (mm): M6X1.00 | T2 thread (mm): M5X0.8X12 | L (mm): 30 | L1 (mm): 19 | L2 (mm): 10 | W (mm): 7 | H (mm): 13 | H1 (mm): 7
• ID: 128461 | SKU: BJ214-10001 | Part Number: BJ214-10001 | T thread (mm): M10X1.50 | T1 thread (mm): M8X1.25 | T2 thread (mm): M5X0.8X12 | L (mm): 40 | L1 (mm): 22 | L2 (mm): 12 | W (mm): 8 | H (mm): 16.5 | H1 (mm): 8.5
• ID: 128463 | SKU: BJ214-12001 | Part Number: BJ214-12001 | T thread (mm): M12X1.75 | T1 thread (mm): M10X1.50 | T2 thread (mm): M6X1X20 | L (mm): 50 | L1 (mm): 24 | L2 (mm): 15 | W (mm): 9 | H (mm): 21 | H1 (mm): 11
• ID: 128466 | SKU: BJ214-16001 | Part Number: BJ214-16001 | T thread (mm): M16X2.00 | T1 thread (mm): M12X1.75 | T2 thread (mm): M6X1X20 | L (mm): 60 | L1 (mm): 30 | L2 (mm): 20 | W (mm): 12 | H (mm): 23 | H1 (mm): 12

Media

• Specifications (PDF) available for the product

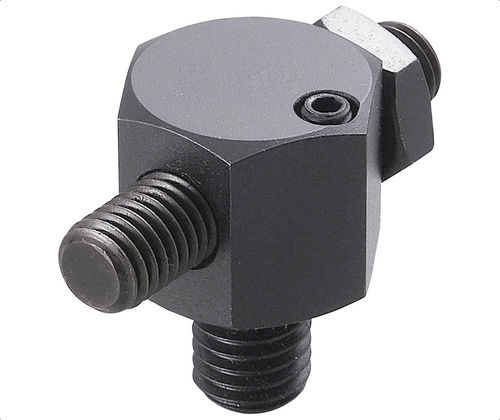

• Product photo: ADJUSTABLE STOPS - SCREW STOP BUTTON (BJ214)

Technical specifications

• Material: alloy steel
• Finish: black oxide
• Intended use: low-profile workpieces
• Available sizes/variants: multiple thread and length options (see Part Options above)
