Steel Rest pad BJ760 series

with internal thread

Product Description

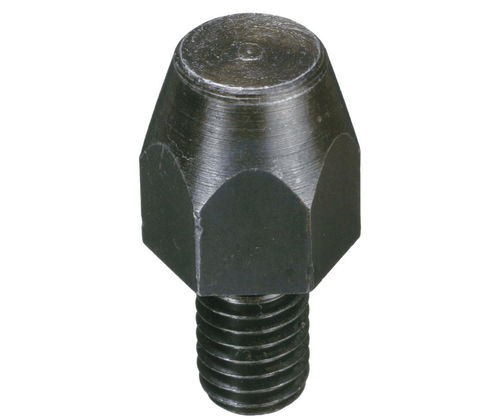

These screw rest pads are used as supports and side locator pads in machining setups. The threaded design permits direct installation into tapped mounting holes. The contact area features a smooth, small cone-shaped profile to provide localized support without damaging the workpiece. Manufactured from 1045 steel, hardened and finished with black oxide for basic corrosion protection.

Part Options (table)

• 142635 | Part No.: BJ760-06001 | Thread: M6x1.00 | D: 8 mm | L: 10 mm | H: 11 mm | SW: 10 mm
• 142636 | Part No.: BJ760-06002 | Thread: M6x1.00 | D: 6 mm | L: 20 mm | H: 11 mm | SW: 10 mm
• 142637 | Part No.: BJ760-08001 | Thread: M8x1.25 | D: 10 mm | L: 15 mm | H: 13 mm | SW: 13 mm
• 142638 | Part No.: BJ760-08002 | Thread: M8x1.25 | D: 9 mm | L: 30 mm | H: 13 mm | SW: 13 mm
• 142639 | Part No.: BJ760-10001 | Thread: M10x1.50 | D: 13 mm | L: 20 mm | H: 16 mm | SW: 17 mm
• 142640 | Part No.: BJ760-10002 | Thread: M10x1.50 | D: 13 mm | L: 40 mm | H: 16 mm | SW: 17 mm
• 142641 | Part No.: BJ760-12001 | Thread: M12x1.75 | D: 15 mm | L: 25 mm | H: 20 mm | SW: 19 mm
• 142642 | Part No.: BJ760-12002 | Thread: M12x1.75 | D: 15 mm | L: 50 mm | H: 20 mm | SW: 19 mm

Product Types

• Work Rests
• Screw rest pad
• Steel, heat treated

Documents

• Specifications (PDF available)

Technical specifications

• Material: 1045 steel
• Heat treatment: hardened
• Finish: black oxide
• Contact area: smooth, small cone-shaped
• Mounting: threaded for tapped-hole installation
• Intended use: supports and side locator pads in machining setups
• Available thread sizes / associated part numbers: M6x1.00 (BJ760-06001, BJ760-06002), M8x1.25 (BJ760-08001, BJ760-08002), M10x1.50 (BJ760-10001, BJ760-10002), M12x1.75 (BJ760-12001, BJ760-12002)
