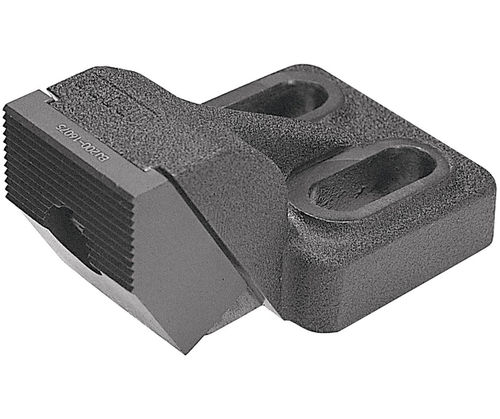

Clamping jaw BJ200

Description
These backstops provide downholding force and prevent part lift in industrial fixturing and clamping applications. They include two spherical washers compatible with both M12 and M16 screws. The body is cast iron with a black powder finish and the jaw is made from hardened 1050 steel with a black oxide finish.

Product table
ID | SKU | Part Number | L (mm) | W (mm) | H (mm) | Load Capacity (Lbs)
129780 | BJ200-16075 | BJ200-16075 | 141 | 95 | 75 | 13,400

Part options

• Overall Length (mm): 141

Materials & Finish

• Body: cast iron, black powder finish
• Jaw: hardened 1050 steel, black oxide finish
• Includes two spherical washers for both M12 and M16 screws

Caractéristiques / spécifications techniques

• Model: BJ200
• Part number / SKU: BJ200-16075
• ID: 129780
• Overall length (L): 141 mm
• Width (W): 95 mm
• Height (H): 75 mm
• Load capacity: 13,400 lbs
• Body material: cast iron
• Body finish: black powder
• Jaw material: hardened 1050 steel
• Jaw finish: black oxide
• Includes spherical washers for M12 and M16 screws
