Steel alloy stop BJ201 series

steel

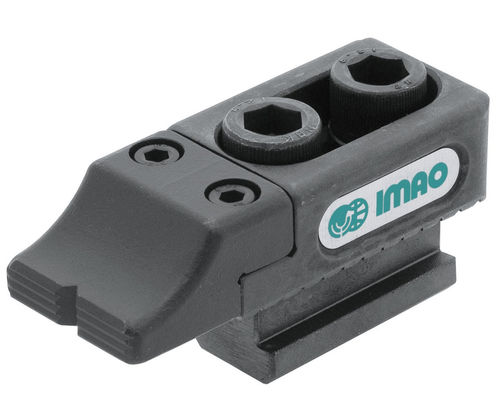

Product Overview
These low-profile adjustable toe stops provide precise workpiece positioning while keeping the stop clear of machining operations. The low toe profile allows quick removal and insertion of parts. Each assembly includes a T-slot nut and a socket head cap screw. Body and serrated jaw are manufactured from 4140 alloy steel (jaw quenched and tempered); T-slot nut and socket screw use 4145 / 4135 steels. All components receive a black oxide finish for uniform appearance.

Product Types

• BJ201-T — T-slot nut, serrated
• BJ201-T — T-slot nut, smooth
• BJ201 — Serrated
• BJ201 — Smooth

Part Options (table)

• BJ201-12022T | Thread: M12x1.75-35L | L: 90 mm | L1: 50 mm | L2: 26.5 mm | W: 35 mm | W1: 20 mm | W2: 22 mm | W3: 14 mm | H: 25.5 mm | H1: 22 mm | H2: 10 mm | H3: 8 mm | K: 10 mm | Load Capacity: 1,660 lbs | Allowable Screw Torque: 66 ft/lbs
• BJ201-16030T | Thread: M16x2.00-45L | L: 115 mm | L1: 67.5 mm | L2: 30 mm | W: 40 mm | W1: 26 mm | W2: 28 mm | W3: 18 mm | H: 34.5 mm | H1: 30 mm | H2: 14 mm | H3: 10 mm | K: 14 mm | Load Capacity: 2,630 lbs | Allowable Screw Torque: 111 ft/lbs

Materials & Finish

• Body: 4140 alloy steel, black oxide finish
• Serrated jaw: 4140 alloy steel, quenched and tempered, black oxide finish
• T-slot nut: 4145 steel, black oxide finish
• Socket head cap screw: 4135 steel, black oxide finish

Documentation
Specifications PDF available for this product.

Technical characteristics / specifications

• Low-profile adjustable toe stop designed for precise workpiece positioning and quick part removal/insertion
• Low toe profile keeps the stop clear of machining operations
• Includes T-slot nut and socket head cap screw
• Multiple thread/length and dimensional variants available as shown in Part Options
• Load capacities up to 1,660 lbs (BJ201-12022T) and 2,630 lbs (BJ201-16030T)
• Allowable screw torque: 66 ft/lbs (BJ201-12022T) and 111 ft/lbs (BJ201-16030T)
• Durable black oxide finish on all steel components
