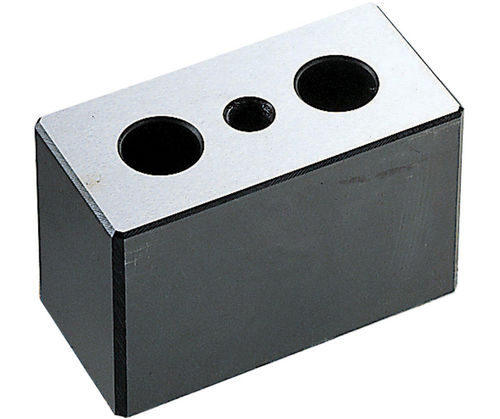

Component support BJ310 series

for workpiecesbracketcarbon steel

Product description
Use these support blocks under workpieces to prevent bending during clamping or machining. Manufactured from 1045 steel with precision-ground surfaces and a black oxide finish. Mounting is via a threaded M16×2.00 hole (T / T1 = M16). Common footprint: L = 100 mm × W = 50 mm; available heights H: 25, 32, 40, 50, 63, 80, 100 mm.

Part options

• 142616 — BJ310-16025 — Thread M16×2.00 — T1 M16 — L 100 mm — L1 50 mm — W 50 mm — H 25 mm — H1 8 mm — H2 Through
• 142617 — BJ310-16032 — Thread M16×2.00 — T1 M16 — L 100 mm — L1 50 mm — W 50 mm — H 32 mm — H1 15 mm — H2 Through
• 142618 — BJ310-16040 — Thread M16×2.00 — T1 M16 — L 100 mm — L1 50 mm — W 50 mm — H 40 mm — H1 23 mm — H2 Through
• 142619 — BJ310-16050 — Thread M16×2.00 — T1 M16 — L 100 mm — L1 50 mm — W 50 mm — H 50 mm — H1 33 mm — H2 Through
• 142620 — BJ310-16063 — Thread M16×2.00 — T1 M16 — L 100 mm — L1 50 mm — W 50 mm — H 63 mm — H1 46 mm — H2 35 mm
• 142621 — BJ310-16080 — Thread M16×2.00 — T1 M16 — L 100 mm — L1 50 mm — W 50 mm — H 80 mm — H1 46 mm — H2 35 mm
• 142622 — BJ310-16100 — Thread M16×2.00 — T1 M16 — L 100 mm — L1 50 mm — W 50 mm — H 100 mm — H1 46 mm — H2 35 mm

Technical specifications

• Series: BJ310
• Material: 1045 steel
• Surface: precision ground
• Finish: black oxide
• Function: support blocks to prevent bending during clamping or machining
• Thread: M16×2.00 (T / T1 = M16)
• Common dimensions: L = 100 mm, L1 = 50 mm, W = 50 mm
• Available H sizes (mm): 25, 32, 40, 50, 63, 80, 100
• H1 values (mm) by variant: 8, 15, 23, 33, 46
• Available part numbers / SKUs: BJ310-16025, BJ310-16032, BJ310-16040, BJ310-16050, BJ310-16063, BJ310-16080, BJ310-16100

Applications
Designed for use in clamping, machining and fixturing operations to maintain workpiece flatness and prevent distortion. Suitable for milling, grinding, drilling and assembly jigs. Install using the M16 mounting and apply appropriate tightening torque to avoid part deformation.

Ordering information
Order by SKU or part number listed in the part options. For custom dimensions, alternative surface treatments or volume orders, provide required specifications to your supplier.
