Alloy stop unit BJ202 series

steelsteel alloy

Description

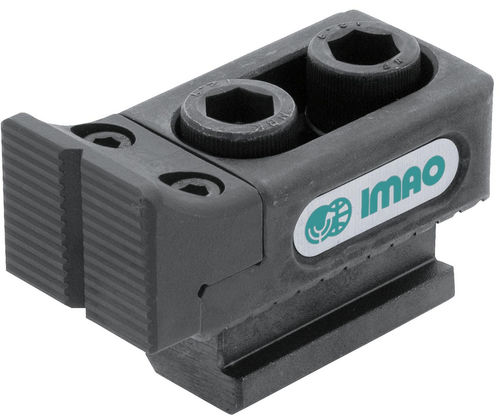

This adjustable side stop allows for quick removal and insertion of parts. The large jaws provide increased stopping surface. Includes T-slot nut and socket head cap screw for T-slot variants. Body: 4140 alloy steel with black oxide finish. Serrated jaw: 4140 alloy steel, quenched and tempered, black oxide finish. T-slot nut: 1045 steel, black oxide finish. Socket head cap screw: 4135 steel, black oxide finish.

Product Types

• BJ202-T — T-slot nut, serrated
• BJ202-T — T-slot nut, smooth (ground)
• BJ202 — Serrated
• BJ202 — Smooth

Available parts (table)
Headers: ID | SKU | Part Number | Thread | L mm | L1 mm | L2 mm | W mm | W1 mm | W2 mm | W3 mm | H mm | H1 mm | H2 mm | H3 mm | H4 mm | K mm | Load Capacity Lbs | Allowable Screw Torque ft/lbs | PN
142399 | BJ202-12022T | BJ202-12022T | M12x1.75-35L | 75 | 35 | 26.5 | 35 | 20 | 22 | 14 | 25.5 | 22 | 29 | 16 | 8 | 10 | 1,660 | 66 | (none)
142400 | BJ202-16030T | BJ202-16030T | M16x2.00-45L | 95 | 47.5 | 30 | 40 | 26 | 28 | 18 | 34.5 | 30 | 38 | 20 | 10 | 14 | 2,630 | 111 | (none)

Features

• Quick removal and insertion of parts
• Large jaws for increased stopping surface
• Includes T-slot nut and socket head cap screw (for T-slot variants)

Materials & Finish

• Body: 4140 alloy steel, black oxide finish
• Serrated jaw: 4140 alloy steel, quenched and tempered, black oxide finish
• T-slot nut: 1045 steel, black oxide finish
• Socket head cap screw: 4135 steel, black oxide finish

Technical specifications

• Series / Model: BJ202
• Variant example: BJ202-T indicates T-slot nut version
• Typical available threads/lengths: M12x1.75-35L, M16x2.00-45L
• Overall lengths (L) available: 75 mm, 95 mm
• Examples of Load Capacity: 1,660 lbs (BJ202-12022T), 2,630 lbs (BJ202-16030T)
• Allowable screw torque examples: 66 ft/lbs (BJ202-12022T), 111 ft/lbs (BJ202-16030T)
• Finish: black oxide on steel components
• Specification sheet available for BJ202-T (PDF format)
