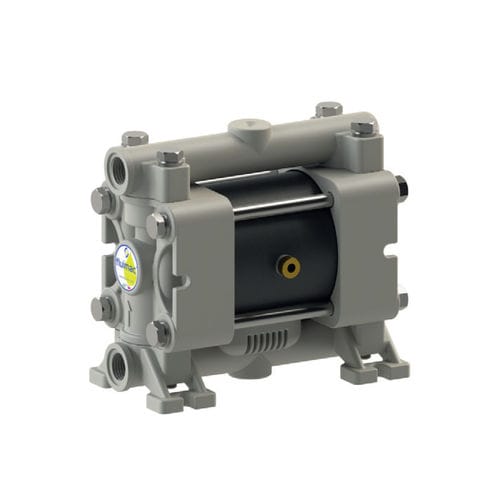

Diaphragm pump P7waterfor chemicalsfor food products
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water, for chemicals, for food products, air
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- for the pharmaceutical industry, for the chemical industry, for the food and beverage industry, for the beverage industry, for the petrochemical industry, for the mining industry, for marine applications, agriculture, for the paper industry, for the textile industry, for the printing industry, for the automotive industry
- Applications
- transfer, metering, distribution, lift, suction
- Material
- PP, PVDF
- Protection level
- chemical-resistant
- Other characteristics
- compact, dry, portable
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 7 l/min
(1.8492 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 8 bar
(116.03 psi)- Head
Min.: 0 m
(0'00" )Max.: 60 m
(196'10" )- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 95 °C
(203 °F)- Length
129 mm
(5.079 in)- Width
68 mm
(2.68 in)- Height
112 mm
(4.41 in)- Weight
1 kg, 1.1 kg
(2.2 lb, 2.43 lb)
Description
Fluid connections: 1/4” BSP
Air connection: 4 mm
Max Suction Lift Dry: 3 m
Max Suction Lift Wet: 9,8 m
Max Solid passing: 2 mm
Noise level: 62 dB
Max Viscosity: 5.000 cps
Displacement per Stroke: 18 CC~
