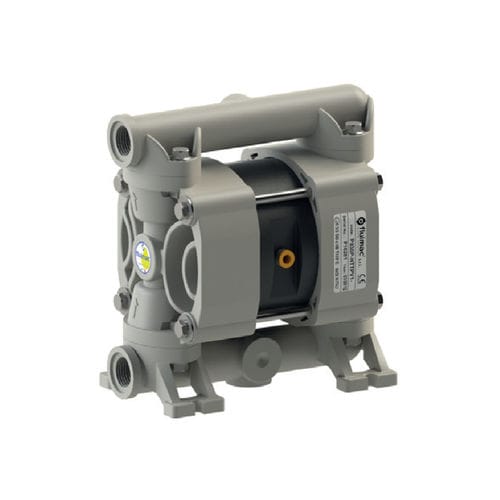

Diaphragm pump P30 for chemicalspneumaticself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- suction
- Other characteristics
- dry
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 35 l/min
(9.24602 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 7 bar
(101.526 psi)- Head
70 m
(229'07" )- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 95 °C
(203 °F)- Length
177 mm, 181 mm, 183 mm
(7 in, 7 in, 7 in)- Width
105 mm, 106 mm, 110 mm
(4.13 in, 4.17 in, 4.33 in)- Height
185 mm, 189 mm, 192 mm
(7.28 in, 7.44 in, 7.56 in)- Weight
2 kg, 2.5 kg, 3 kg, 4 kg
(4.41 lb, 5.51 lb, 6.61 lb, 8.82 lb)
Description
Diaphragm pumps
Fluid connections: 1/2” BSP
Air connection: 6 mm
Max delivery head: 70 m
Max Suction Lift Dry: 5 m
Max Suction Lift Wet: 9,8 m
Max Solid passing: 3 mm
Noise level: 65 dB
Max Viscosity: 15.000 cps
Displacement per stroke: 65 CC~
