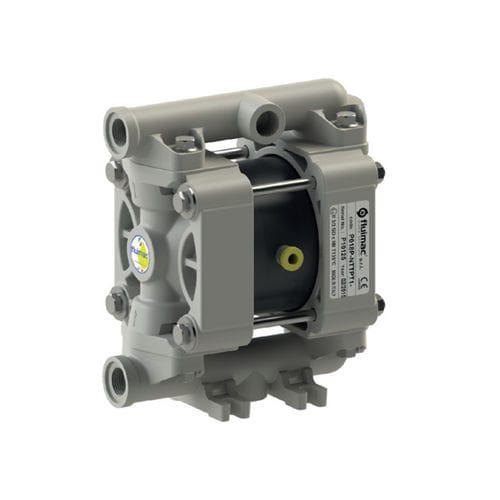

Diaphragm pump P18 for chemicalspneumaticself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- lift, suction
- Other characteristics
- dry
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 20 l/min
(5.28344 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 7 bar
(101.526 psi)- Head
Min.: 0 m
(0'00" )Max.: 70 m
(229'07" )- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 95 °C
(203 °F)- Length
146 mm, 148 mm
(6 in, 6 in)- Width
92 mm, 96 mm
(3.62 in, 3.78 in)- Height
152 mm, 167 mm
(5.98 in, 6.57 in)- Weight
1.5 kg, 1.7 kg, 1.8 kg, 2.5 kg
(3.31 lb, 3.75 lb, 3.97 lb, 5.51 lb)
Description
Diaphragm pumps
Fluid connections: 3/8” BSP
Air connection: 6 mm
Max Suction Lift Dry: 5 m
Max Suction Lift Wet: 9,8 m
Max Solid passing: 2,5 mm
Noise level: 65 dB
Max viscosity: 10.000 cps
Displacement per stroke: 30 CC~
