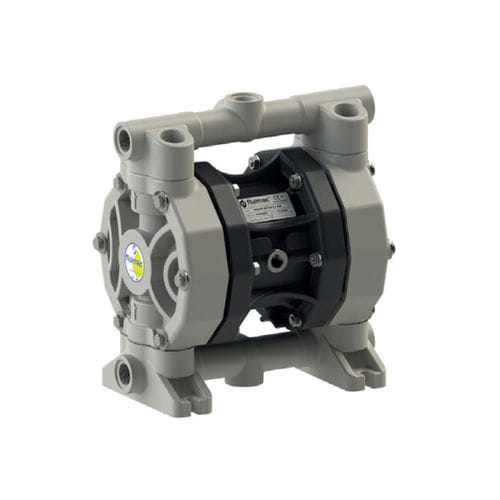

Diaphragm pump P55 for chemicalspneumaticself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- lift, suction
- Other characteristics
- dry
- Flow
Max.: 55 l/min
(14.52946 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
Max.: 8 bar
(116.03 psi)Min.: 0 bar
(0 psi)- Head
Max.: 80 m
(262'05" )Min.: 0 m
(0'00" )- Fluid temperature
Max.: 95 °C
(203 °F)Min.: -20 °C
(-4 °F)- Length
234 mm, 238 mm
(9 in, 9 in)- Width
156 mm
(6.14 in)- Height
245 mm, 249 mm, 268 mm
(9.65 in, 9.8 in, 10.55 in)- Weight
4 kg, 4.5 kg, 5 kg, 6 kg
(8.82 lb, 9.92 lb, 11.02 lb, 13.23 lb)
Description
Diaphragm pumps
Fluid connections: 1/2” BSP
Air connection: 1/4” BSP
Max Suction Lift Dry: 5 m
Max Suction Lift Wet: 9,8 m
Max Solid passing: 3,5 mm
Noise level: 70 dB
Max Viscosity: 20.000 cps
Displacement per stroke: 140 CC~
