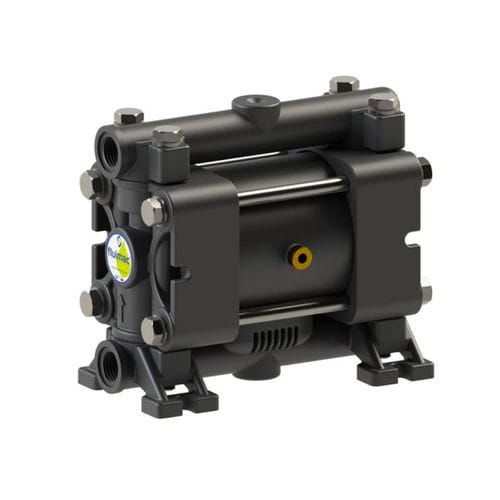

Diaphragm pump P7 ATEXfor chemicalsfor food productspneumatic
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals, for food products
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- lift, suction
- Other characteristics
- dry
- Flow
Max.: 7 m³/h
(247.20267 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
6 bar
(87.023 psi)- Head
60 m
(196'10" )- Fluid temperature
Max.: 95 °C
(203 °F)Min.: -20 °C
(-4 °F)- Length
129 mm
(5 in)- Width
68 mm
(2.68 in)- Height
112 mm
(4.41 in)- Weight
0.84 kg, 0.96 kg, 1 kg, 1.1 kg
(1.85 lb, 2.12 lb, 2.2 lb, 2.43 lb)
Description
Fluid connections: 1/4” BSP
Connessione aria: 4 mm
Max Suction Lift Dry: 3 m
Max Suction Lift Wet: 9,8 m
Max Solid passing: 2 mm
Noise level: 62 dB
Max Viscosity: 5.000 cps
Displacement per stroke: 18 CC~
