Multifunction calibrator 5322A series
voltagecurrentloop

Multifunction calibrator - 5322A series - Fluke Calibration - voltage / current / loop
Multifunction calibrator - 5322A series - Fluke Calibration - voltage / current / loop
Multifunction calibrator - 5322A series - Fluke Calibration - voltage / current / loop - image - 2
Multifunction calibrator - 5322A series - Fluke Calibration - voltage / current / loop - image - 3
Multifunction calibrator - 5322A series - Fluke Calibration - voltage / current / loop - image - 4
Multifunction calibrator - 5322A series - Fluke Calibration - voltage / current / loop - image - 5
Add to favorites
Compare this product

Characteristics

Physical quantity
multifunction, voltage, current, loop, resistance, impedance
Options
portable, manual
Temperature

Max.: 28 °C
(82 °F)

Min.: 18 °C
(64 °F)

Voltage

115 V, 230 V

Description

Product overview
  • The Fluke Calibration 5322A Multifunction Electrical Tester Calibrator integrates multiple calibration functions into one instrument to replace discrete resistors, decade boxes and custom fixtures commonly used for electrical safety tester calibration.
  • Designed to increase lab and production throughput — up to four times faster when automated with MET/CAL calibration management software versus manual multi‑product methods.


Key functions and capabilities
  • Calibrates a wide range of testers: hipot/AC‑DC, insulation resistance (megaohm) testers, leakage current testers, multifunction installation testers, portable appliance testers (PATs), continuity and ground bond testers, loop/line impedance testers and RCD/GFCI testers.
  • Continuously variable high‑voltage resistance outputs for insulation resistance calibration: 10 kΩ to 100 GΩ at 1.5 kV (extendable to 10 TΩ with external R‑multiplier and included 10 kV divider).
  • Leakage current simulation for direct/touch, differential and substitute methods with 10 µA resolution (0.1 mA to 30 mA).
  • Precision low‑resistance sources for continuity and ground bond: 100 mΩ to 10 kΩ (2‑wire and 4‑wire modes; discrete 10 mΩ option available).
  • Line/loop impedance outputs using 16 high‑power resistors, Scan mode and optional Active Loop Compensation (VLC) to compensate residual impedance (COMP mode up to 2 Ω).
  • RCD/GFCI simulation and measurement: calibrates trip current and trip time across multiple modes (0.5×I, 1×I, 1.4×I, 2×I, 5×I and PAT modes) with high resolution and low uncertainties.
  • Hipot AC/DC voltage calibration and measurement up to 5 kV built‑in; optional 10 kV divider and optional characterized 40 kV probe for higher voltage applications.
  • Optional 600 V precision AC/DC source (VLC option) for voltage calibration and synchronized Active Mode to reduce interference.


User interface and controls
  • Large, bright full‑color display with color coding for sourced (blue) and measured (red) values and Active Terminal Display showing active calibrator terminals.
  • Soft menu keys that adapt to the active function, numeric keypad and rotary jog wheel for precise entry and selection.
  • Graphical help guide accessible via Mode softkey to assist with correct connections and procedures.


Included accessories and options
  • External R‑Multiplier to extend high‑resistance sourcing up to 10 TΩ for testing at 10 kV.
  • RCD PAT adapter included for secure connections to regional plug/socket types.
  • External 10 kV divider included for measuring testers with 10 kV outputs; optional 40 kV characterized probe available.
  • Optional accessories: 5322A‑LOAD (5 kV high‑resistance load), VLC (600 V source and voltage loop compensation), transit case, rack‑mount kit.


Models
  • 5322A — base multifunction calibrator (1.5 kV resistance).
  • 5322A/5 — with 5 kV high‑voltage resistance outputs.
  • 5322A/VLC — adds 600 V source and Active Loop Compensation.
  • 5322A/40 — supports characterized 40 kV probe option.
  • Combinations available (e.g., 5322A/5/VLC, 5322A/VLC/40, 5322A/5/40, 5322A/5/VLC/40).


Applications
  • Laboratory calibration of insulation, hipot, leakage, RCD/GFCI, PAT, loop/line impedance, ground bond and low‑resistance meters.
  • Production test benches and calibration labs that require a single, multifunction instrument to reduce calibration time, footprint and variability.

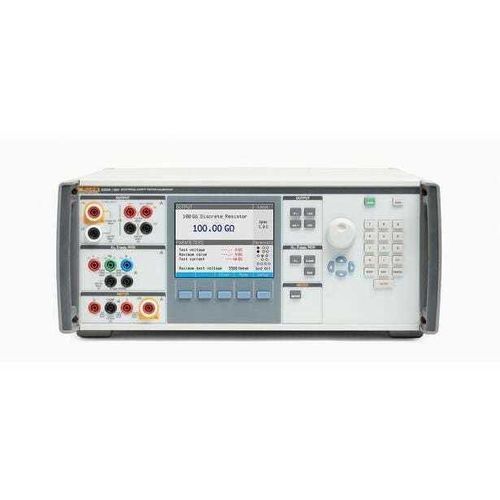

Front and rear panel highlights
  • Full‑color display and soft keys for mode‑driven operation; Active Terminal Display indicates active outputs.
  • Output jog wheel and numeric keypad for rapid, precise value entry; graphical connection help on display.
  • IEEE‑488 (GPIB) and USB communication interfaces for automated calibration systems and MET/CAL integration.


Technical specifications (selected)
  • Specification confidence level: 99 %; calibration interval: 1 year.
  • Power: 115/230 V AC (50/60 Hz) +10 % / −14 %; max power 1250 VA.
  • Operating environment: warm‑up 15 min; operating 18 °C to 28 °C; storage −10 °C to 50 °C; altitude up to 3050 m; relative humidity <80 % to 28 °C (resistance outputs >10 GΩ specified <70 %).
  • Dimensions: 430 × 555 × 170 mm; Weight: ~20 kg.
  • Low resistance source: 100 mΩ to 10 kΩ (+ discrete 10 mΩ); lowest 4‑wire output 1 mΩ.
  • High resistance source 1.5 kV: 10 kΩ to 10 GΩ (+ 100 GΩ single‑value in some modes); 5.5 kV option: 10 kΩ to 100 GΩ.
  • Test voltage measurement: 0 V to 5500 V DC.
  • Ground bond resistance source: 1 mΩ to 1700 Ω.
  • Line/loop source: 25 mΩ to 1700 Ω; COMP mode (VLC) compensates up to 2 Ω; resolution 1 mΩ.
  • Leakage current source: 0.1 mA to 30 mA; modes passive/differential/substitute/Active (VLC) with stated uncertainties.
  • RCD trip current ranges and trip time: multiple ranges (examples 5–150 mA), trip time 10 to 5000 ms with low uncertainty.
  • Multimeter inputs: V input to 1100 V; HV input to 5000 V; COM to PE withstand up to 2200 V pk.
  • AC/DC current: 0 A to 20 A continuous; 20 A to 30 A up to 5 minutes.
  • AC power: 0 to 33 kVA; phase angle/Power Factor support with phase uncertainty ±0.1°.
  • Options and accessories: R‑Multiplier, 10 kV divider, 40 kV probe, 5322A‑LOAD, VLC option, PAT RCD adapter, rack and transit accessories.
