Digital clamp multimeter 283 FC/PV

6000 count digitalportable1000 V

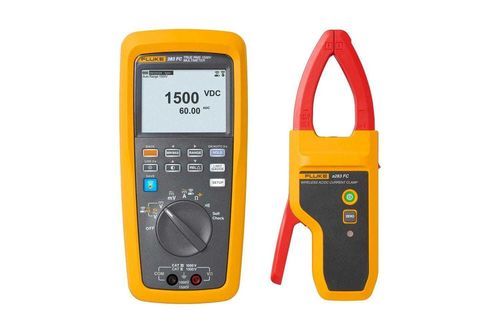

Product overviewFluke 283 FC/PV is a True‑RMS digital multimeter kit designed for PV and other high‑voltage DC applications. The kit pairs the 283 FC multimeter with the wireless a283 FC current clamp to deliver accurate, repeatable measurements and integrated safety for DC systems up to 1500 V. Supplied with MC4 solar test leads, TL175‑HV silicone test leads, bright backlit display, illuminated keypad, magnetic hanging kit and a custom hard case.

Key features

• Safety rating: CAT III 1500 V / CAT IV 1000 V for multimeter, clamp and included leads
• True‑RMS measurements for AC and DC signals
• Wireless a283 FC clamp measures AC/DC up to 60 A with thin‑jaw design for tight spaces
• User‑defined limit gauge with visual and audio alarms for fast go/no‑go checks
• Multimeter readiness self‑check (calibration, battery and lead verification)
• Simultaneous voltage and current measurement with automatic VA calculation and timestamping
• Internal logging and memory with time/date stamps; wireless transfer via Fluke Connect™ for trend analysis and reporting
• Includes Staubli MC4 solar test leads and TL175‑HV TwistGuard™ silicone test leads rated for supplied safety categories

What is included

• 283 FC True‑RMS Wireless Digital Multimeter
• a283 FC 60 A True‑RMS Wireless AC/DC Current Clamp
• Solar MC4 test lead set (Staubli MC4)
• TL175‑HV TwistGuard™ silicone test leads (CAT III 1500 V / CAT IV 1000 V)
• Premium hard carrying case
• Magnetic hanging strap
• Limited lifetime warranty on the multimeter; 1‑year warranty on the clamp

Technical specifications (selected)283 FC Digital Multimeter — AC volts: ranges to 1000 V (6.000 V / 60.00 V / 600.0 V / 1000 V), typical accuracy 1.0% + 3 (45–500 Hz); DC volts: ranges to 1500 V (6.000 V / 60.00 V / 600.0 V / 1500 V), typical accuracy 0.09% + 3 (lower ranges), 0.15% + 2 (1500 V). Resistance: up to 50.00 MΩ. Capacitance: up to 9999 μF. Frequency: up to 99.99 kHz. Display counts: 6000; dimensions: 225 mm x 105 mm x 57 mm; weight: ~0.7 kg. Battery: 3×AA, >150 h typical (no backlight); >100 h when connected to wireless clamp. Environmental: operating −10 °C to 60 °C; storage −30 °C to +70 °C. Ingress protection: IP52; 2 m drop tested.

a283 FC Wireless Current Clamp — AC/DC current True‑RMS: up to 60 A, resolution 0.01 A, accuracy 1.5% + 0.15 A (45–500 Hz). Jaw opening: 34 mm; dimensions: 226.0 mm x 91.0 mm x 42.0 mm; weight: 0.375 kg; battery: 2×AAA, >80 h typical. Safety & approvals: CAT III 1500 V / CAT IV 1000 V; EMC IEC 61326‑1/2‑2; ETL, CSA, CE, UK CA.
