Chemical pump RFM series

air-drivenself-primingdiaphragm

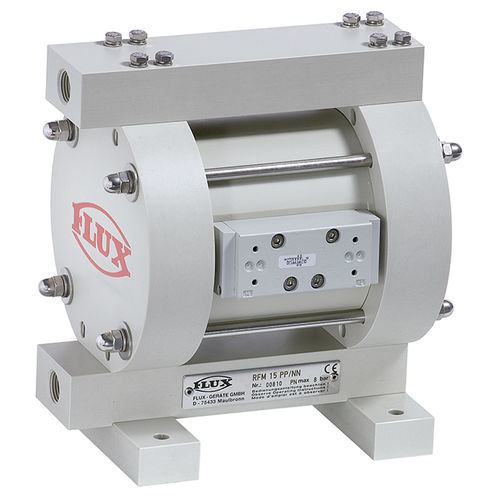

The FLUX air-operated diaphragm pump RFM/RFML 25 is self-priming and protected against dry running. The pump is distinguished for its versatility and can be used for pumping low to high viscosity media with solid particles, abrasive media, highly flammable media or liquids with high gas content. Suction head product-filled: max. 6 m1 Size of solids: max. 3 mm Viscosity: min. 1 mPas - max. 15000 mPas2 Housing Materials: Polypropylene, Polypropylene conductive, PTFE, PTFE conductive Media / Fluids: Abrasive media, Fuels, Highly flammable media, Media with solid particles, Viscous media Connection pressure side: G 1 Connection suction side: G 1 Product attributes Massive construction Almost completely diffusion resistant due to the thick-surface structure Long service life even at high pressures due to composite enduring diaphragm Version available with flap valves Extremely long service life even with abrasive media Quiet/low noise Composite enduring diaphragm with integrated metallic core Easily accessible control valve without seals Benefits Safe dry running and overload-proof Self-priming Insensitive to solids in suspension Variable delivery rates by simply adjusting the air pressure Very high chemical resistance Suitable for high temperature Long service life of diaphragm due to short stroke lifts Versions for use in hazardous areas available FDA-certified version available
