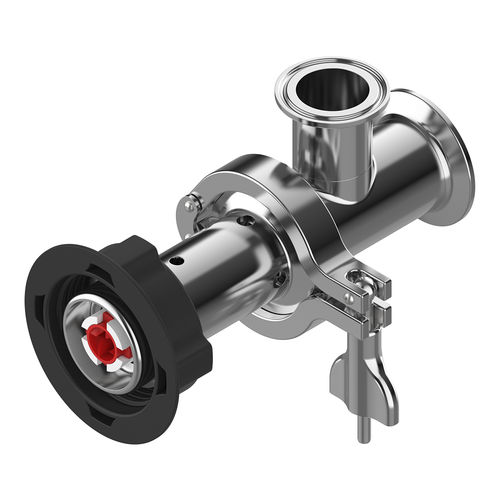

Impeller pump MINIFLUX Sanitary

for food productsoilelectric

The horizontally installed, compact MINIFLUX Sanitary IBC container pump was designed for emptying IBCs and other containers with a bottom outlet. It is intended as an alternative to vertical drum pumps for cases where containers can only be accessed from above with great difficulty if at all. It is also ideal if the medium’s natural outlet via the outlet tap does not provide sufficient pumping pressure for filling at speed or transferring to a container at a higher level, for example. The MINIFLUX is driven by a commutator motor, compressed air motor or brushless motor. The MINIFLUX Sanitary is also designed for use in the hygiene sector. It is FDA-compliant as well as FOOD-compliant according to EC 1935/2004 and can be dismantled in a matter of seconds without any tools. Product attributes To pump from IBCs, bag-in-box IBCs and other containers with an outlet connection at their base Dry-installed pump Little contact with the medium Can be combined with commutator motor, brushless motor or compressed air motor IBCs can be emptied to a residual volume of less than 1 % (depending on the angle of inclination) Low total weight Benefits Suited to running dry under certain conditions Particularly well suited to hygiene applications FDA CFR 21 compliant FOOD-compliant according to EC 1935/2004 Features lip seal (not a mechanical seal) Has minimal dead space Can be dismantled without any tools, easy to clean No greased seals – no risk of greases getting into the medium
