Data connector 715 serieselectrical power supplycircularmale
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- circular
- Connection type
- male, screw-locked
- Size
- M12
- Material
- polyamide
- Protection class
- IP67
- Other characteristics
- IEC
- Primary current
4 A
- Voltage
60 V, 250 V
Description

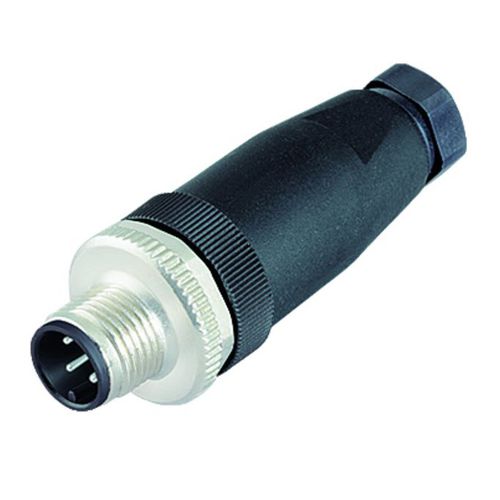

M12-B Male cable connector, Contacts: 4, 4.0-6.0 mm, unshielded, screw clamp, IP67, UL
Connector design - Male cable connector
Version - Connector pin straight
Connector locking system - screw
Termination - screw clamp
Degree of protection - IP67
Cross-sectional area - max. 0.75 mm² / AWG 18
Cable outlet - 4.0-6.0 mm
Temperature range from/to - -40 °C / 85 °C
Mechanical operation - > 50 Mating cycles
Weight (g) - 20.29
Customs tariff number - 85369010
