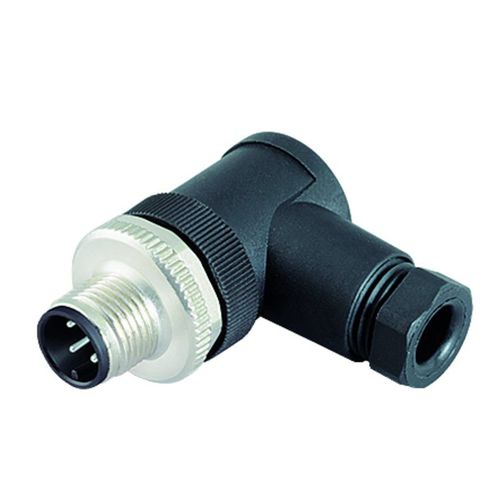

data connector / electrical power supply / elbow / circular
715 series

{{requestButtons}}

Characteristics

  • Type:

    data, electrical power supply

  • Shape:

    elbow, circular

  • Connection type:

    male, screw-locked

  • Size:

    M12

  • Material:

    polyamide

  • Other characteristics:

    IEC, IP67

  • Current:

    4 A

  • Voltage:

    60 V, 250 V

Description

Connector locking systembolted
Terminationscrew clamp
Wire gauge (mm)0,75 mm²
Wire gauge (AWG)(18)
Cable outlet4,0 - 6,0 mm
Degree of protectionIP67
Mechanical operation> 50 Mating cycles
Upper limit temperature85 °C
Lower limit temperature-40 °C
Rated impulse voltage2500 V
Pollution degree3
Overvoltage categoryII
Insulating material groupIII
Volume resistivity≤ 8 mΩ
Insulation resistance≥ 10¹⁰Ω
Contact materialCuZn (brass)
Contact platingCuSnZn (Optalloy)
Contact body materialPA
Housing materialPA
Approval 1UL
Customs tariff number85369010
Weight (g)20.438
