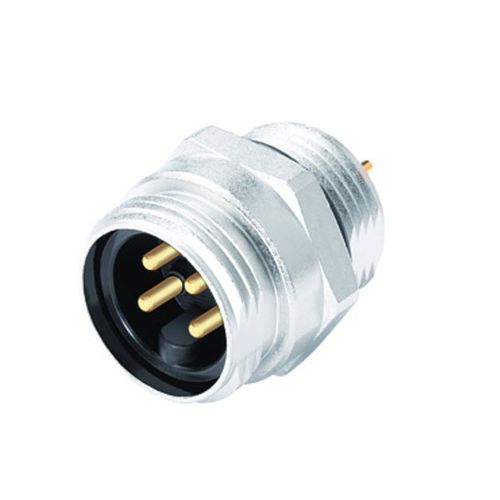

Data connector 870 serieselectrical power supplycircularmale
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- circular
- Connection type
- male, dip solder
- Protection class
- IP68
- Other characteristics
- panel-mount
- Primary current
6 A, 7 A, 10 A
- Voltage
300 V, 600 V
Description
Connector locking systembolted
Terminationdip-solder
Wire gauge (mm)0,75 mm²
Wire gauge (AWG)18
Degree of protectionIP68
Mechanical operation> 100 Mating cycles
Upper limit temperature85 °C
Lower limit temperature-25 °C
Rated impulse voltage4000 V
Pollution degree3
Overvoltage categoryIII
Insulating material groupIII
Volume resistivity≤ 5 mΩ
Contact materialCuZn (brass)
Contact platingAu (gold)
Contact body materialPUR
Housing materialZinkdruckguss, vernickelt
Approval 1UL
Customs tariff number85369010
Weight (g)31.435
