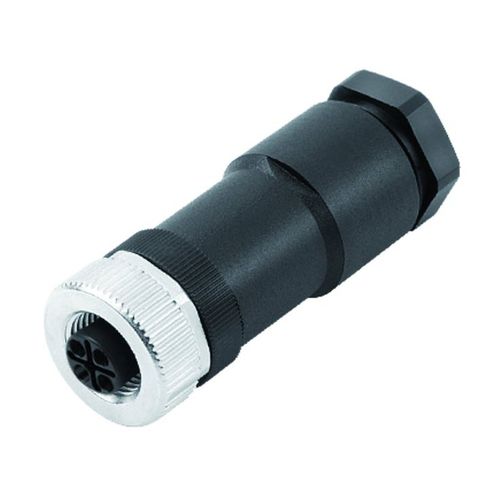

Data connector 814 serieselectrical power supplycircularfemale
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- circular
- Connection type
- female, screw-locked
- Size
- M12
- Electrical characteristics
- power
- Material
- polyamide
- Protection class
- IP67
- Primary current
12 A, 16 A
- Voltage
630 V
Description
Connector locking systembolted
Terminationscrew clamp
Wire gauge (mm)1,5 mm²
Wire gauge (AWG)16
Cable outlet8,0 - 10,0 mm
Degree of protectionIP67
Mechanical operation> 100 Mating cycles
Upper limit temperature85 °C
Lower limit temperature-40 °C
Rated impulse voltage6000 V
Pollution degree3
Overvoltage categoryIII
Insulating material groupIII
Volume resistivity≤ 5 mΩ
Contact materialCuZn (brass)
Contact platingAu (gold)
Contact body materialPA
Approval 1UL
Customs tariff number85369010
Weight (g)25.912
