Data connector 715 serieselectrical power supplycircularfemale
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- circular
- Connection type
- female, crimp
- Size
- M12
- Material
- polyamide
- Protection class
- IP67
- Other characteristics
- IEC, shielded
- Primary current
4 A
- Voltage
250 V
Description

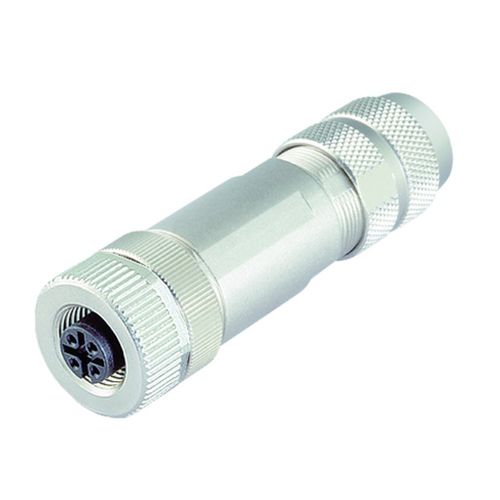

M12-B Female cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, crimping (Crimp contacts must be ordered separately), IP67, UL
Connector design - Female cable connector
Version - Connector socket straight
Connector locking system - screw
Termination - crimping (Crimp contacts must be ordered separately)
Degree of protection - IP67
Cross-sectional area - 0.14-1.50 mm² / min. 26 - max. 16
Cable outlet - 5.0-8.0 mm
Temperature range from/to - -40 °C / 85 °C
Mechanical operation - > 100 Mating cycles
Weight (g) - 46.38
Customs tariff number - 85369010
