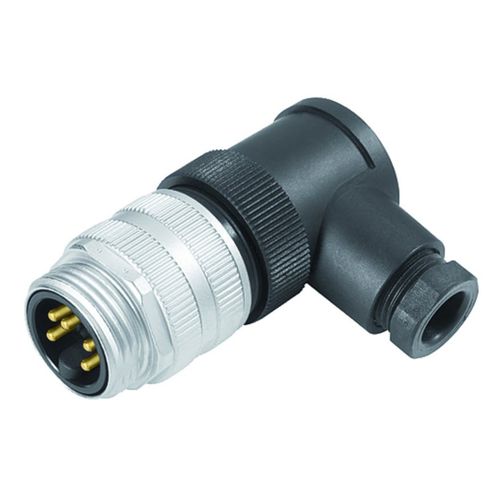

Data connector 820 serieselectrical power supplyelbowcircular
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- elbow, circular
- Connection type
- male, screw-locked
- Material
- polyamide
- Protection class
- IP67
- Primary current
9 A, 12 A
- Voltage
300 V, 600 V
Description
7/8" Male angled connector, Contacts: 2+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL, VDE
Connector design - Male angled connector
Version - Connector pin angled
Connector locking system - screw
Termination - screw clamp
Degree of protection - IP67
Cross-sectional area - max. 1.50 mm² / AWG 16
Cable outlet - 6.0-8.0 mm
Twistability - 45° (8 coding options)
Temperature range from/to - -25 °C / 85 °C
Mechanical operation - > 50 Mating cycles
Weight (g) - 52.63
Customs tariff number - 85369010
