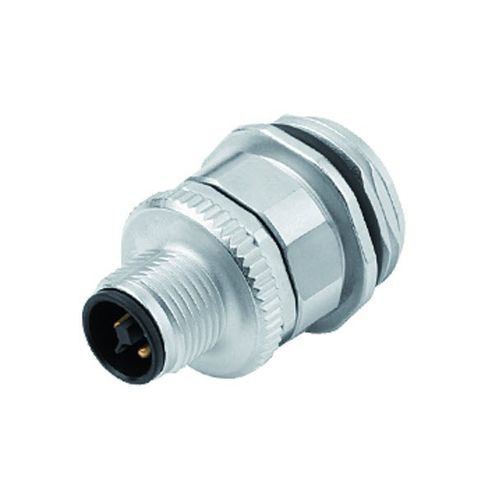

Data connector 813 serieselectrical power supplymalescrew-locked
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Connection type
- male, screw-locked
- Size
- M12
- Electrical characteristics
- power
- Material
- polyamide
- Protection class
- IP68
- Other characteristics
- panel-mount
- Primary current
12 A
- Voltage
63 V
Description
M12-T Male panel mount connector, Contacts: 4, unshielded, screw clamp, IP68, UL, VDE, M20x1.5
Connector design - Male panel mount connector
Version - Connector pin straight
Connector locking system - screw
Termination - screw clamp
Degree of protection - IP68
Cross-sectional area - max. 1.50 mm² / AWG 16
Temperature range from/to - -40 °C / 85 °C
Mechanical operation - > 100 Mating cycles
Weight (g) - 23.40
Customs tariff number - 85369010
