Single-phase electric energy meter C35WSM025
DIN rail

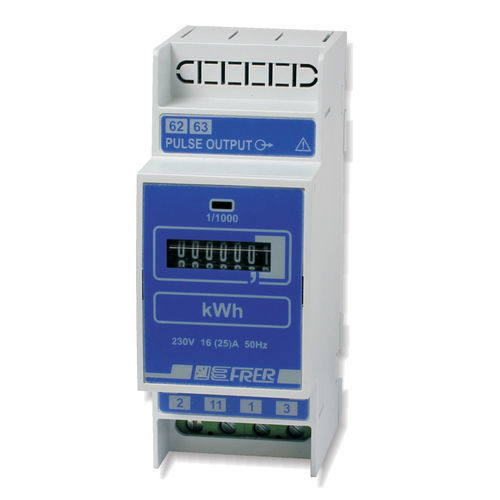

Single-phase electric energy meter - C35WSM025 - FRER - DIN rail
Single-phase electric energy meter - C35WSM025 - FRER - DIN rail
Single-phase electric energy meter - C35WSM025 - FRER - DIN rail - image - 2
Add to favorites
Compare this product
Go to the FRER website for more information

Characteristics

Type
single-phase
Assembly
DIN rail
Voltage

Max.: 230 V

Min.: 230 V

Primary current

Max.: 25 A

Min.: 0 A

Description

Product overview
Mechanical active energy meter with mechanical counter for single-phase installations. Direct connection up to 25 A and rated for 230 V input. Designed for DIN-rail mounting with a width of 2 DIN modules.

Features
  • Mechanical counter display
  • Single-phase measurement
  • Direct connection up to 25 A
  • Rated input voltage: 230 V
  • DIN-rail mounting, width 2 DIN modules

Documentation
Data sheet and a document listing available options are provided for this product.

Technical specifications
  • Model: C35WSM025
  • Type: Active energy meter (mechanical counter)
  • Phases: Single-phase
  • Input voltage: 230 V
  • Maximum direct current: 25 A
  • Mounting: DIN rail
  • Width: 2 DIN modules
  • Available documents: Data sheet, options list
