Three-phase electric energy meter C15DPL

DIN railwith current transformermulti tariff

Product

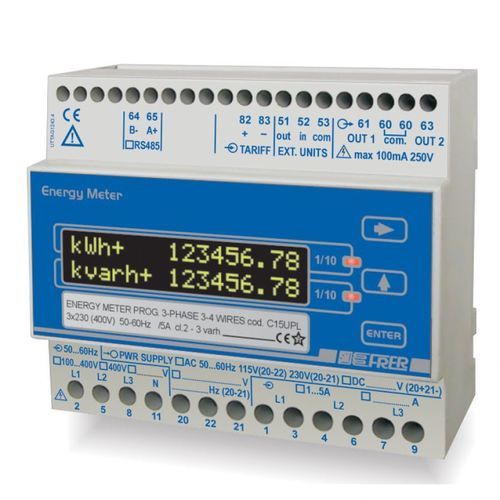

C15DPL - Active energy meter with double-tariff metering for 3-phase systems, occupies 6 DIN modules.

Description
The C15DPL is an active energy meter designed for industrial and commercial electrical panels. It provides accurate energy measurement for 3-phase 3-4 wire unbalanced installations and supports double tariff billing with programmable time slots. The meter accepts current input from external current transformers (CT) with a 5 A nominal input and configurable transformation ratio. Measurement data and tariff status are shown on an LCD display. The compact modular housing mounts on DIN-rail and occupies 6 DIN modules.

Key features

• LCD display for energy and tariff indication
• Double tariff metering with programmable time slots
• Compatible with 3-phase 3-4 wire unbalanced systems
• Current input from CT (5 A) with programmable transformation ratio
• Compact housing: 6 DIN modules for DIN-rail mounting

Applications

• Energy monitoring and billing in industrial and commercial installations
• Integration into energy management systems and distribution boards
• Tariff-based consumption recording for cost allocation and billing

Documents available

• Data sheet (PDF)
• User manual (PDF)
• Communication protocols - Modbus RTU (PDF)
• Options and ordering codes (PDF)
• Technical drawings (PDF / DWG)

Technical specifications

• Type: Active energy meter
• Tariff: Double tariff
• Phases: 3-phase
• Wiring: 3-4 wires, unbalanced systems supported
• Display: LCD
• Current input: from CT, 5 A nominal with programmable ratio
• Mounting: DIN-rail, width 6 DIN modules
• Communication: Modbus RTU (optional)
