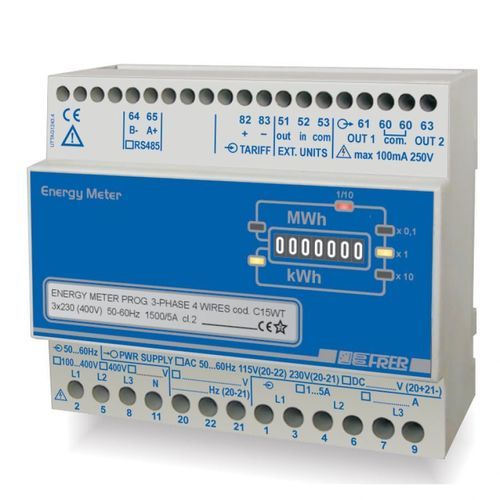

Three-phase electric energy meter C15WPM
DIN railprogrammablewith current transformer

Three-phase electric energy meter - C15WPM - FRER - DIN rail / programmable / with current transformer
Three-phase electric energy meter - C15WPM - FRER - DIN rail / programmable / with current transformer
Three-phase electric energy meter - C15WPM - FRER - DIN rail / programmable / with current transformer - image - 2
Add to favorites
Compare this product
Go to the FRER website for more information

Characteristics

Type
three-phase
Assembly
DIN rail
Other characteristics
programmable, with current transformer
Voltage

400 V

Primary current

5 A, 100 A

Description

Product overview
  • Programmable active energy meter for three-phase systems (3-phase, 3–4 wires)
  • Modular design: occupies 6 DIN modules for rail mounting
  • Electro-mechanical counter display (mechanical register)


Key features
  • CT/5 A input with programmable ratio (configurable via settings)
  • Option for direct 100 A connection
  • Designed for 400 V distribution systems
  • Programmable active energy measurement for billing and monitoring


Available documentation
  • Data sheet
  • User manual
  • Options and accessories list
  • Technical drawing (PDF / DWG)


Notes
  • Electro-mechanical / mechanical counter type meter
  • Intended for three-phase installations (3 or 4 wire)


Technical specifications
  • Model: C15WPM
  • Type: Electro-mechanical active energy meter (mechanical register)
  • Application: Three-phase systems, 3- or 4-wire
  • Module width: 6 DIN modules
  • Voltage rating: 400 V
  • Input: CT/5 A with programmable ratio or direct 100 A
  • Power supply: Self-powered
  • Documents available: data sheet, user manual, options list, technical drawing
