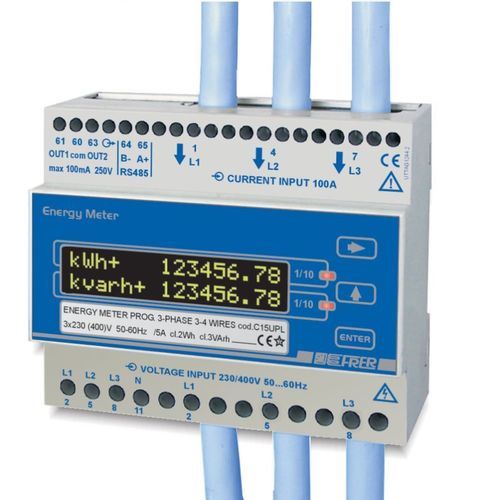

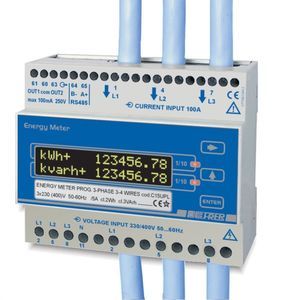

Three-phase electric energy meter C15UPL100

DIN railModbus RTUwith LCD display

Product
Model C15UPL100: active and reactive energy meter for bidirectional measurement in 3-phase networks. Modular DIN-rail device with LCD, designed for direct current input up to 100 A and nominal voltage 400 V.

Display and system
LCD display for 3-phase 3- or 4-wire unbalanced systems. Compatible with TN/TT/IT installations where applicable. Direct connection for currents up to 100 A; nominal voltage 400 V.

Main features

• Measurement: active (kWh) and reactive (kvarh) energy, bidirectional
• Electrical configuration: 3-phase, 3-4 wires, supports unbalanced loads
• Direct current input: up to 100 A
• Nominal voltage: 400 V
• Mounting: 6 DIN modules, DIN-rail modular installation
• Interface: LCD for local readout
• Communication: Modbus RTU support (protocol documentation available)

Documentation available

• Data sheet
• User manual
• Communication protocols – Modbus RTU
• Available options
• DWG technical drawing
• PDF technical drawing

Technical specifications

• Function: active and reactive energy measurement
• Direction: bidirectional
• Phases: 3-phase
• System compatibility: 3-4 wires, unbalanced systems
• Voltage rating: 400 V
• Current input: direct 100 A
• Module width: 6 DIN modules
• Display type: LCD
• Communication: Modbus RTU (see protocol documentation)
