Three-phase electric energy meter C15UYL

DIN railModbus RTUwith LCD display

Overview

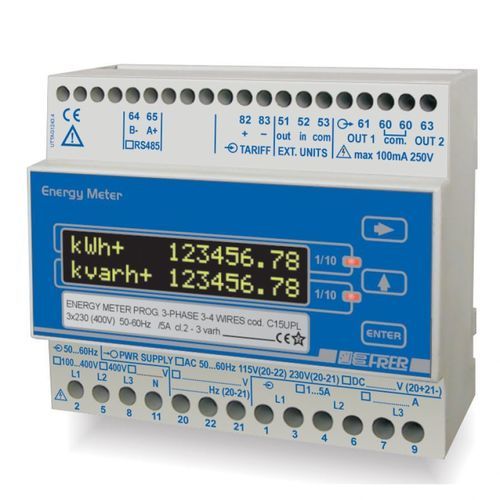

Bidirectional active and reactive energy meter C15UYL for 3-phase 3-wire balanced systems. LCD display, 1TA input, modular DIN-rail housing occupying 6 DIN modules. Communication via Modbus RTU for integration into energy management systems.

Key features

• Bidirectional measurement of active (kWh) and reactive (kvarh) energy
• Designed for 3-phase, 3-wire balanced systems
• 1TA input for current transformer connection
• LCD display for energy and parameter readout
• DIN-rail mounting, width: 6 DIN modules
• Modbus RTU communication (protocol documentation available)
• Technical drawings and accessory options available

Technical specifications

• Model: C15UYL
• Function: Active and reactive energy meter, bidirectional
• Phases/System: 3-phase, 3-wire (balanced)
• CT inputs: 1TA
• Display: LCD
• Mounting: DIN-rail, 6 DIN modules width
• Communication: Modbus RTU (protocol available)
• Documentation: Datasheet, user manual, protocol specification, technical drawing (PDF/DWG)

Downloads

• Datasheet
• User manual
• Modbus RTU protocol specification
• Options and accessories list
• Technical drawing (PDF/DWG)

Applications

• Energy monitoring in industrial and commercial installations
• Submetering and net energy measurement where bidirectional metering is required
• Integration with building or factory energy management systems via Modbus RTU
