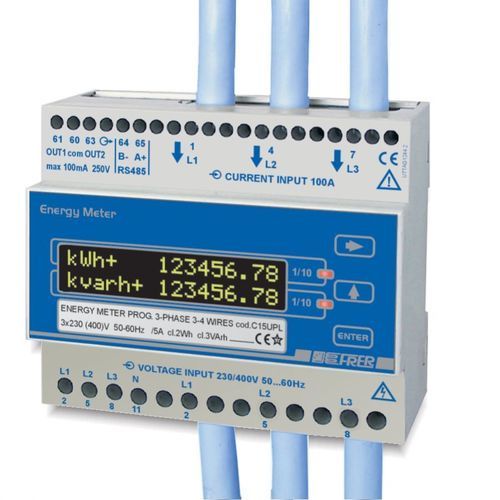

Three-phase electric energy meter C15DPL100
DIN railModbus RTUwith built-in communication

Three-phase electric energy meter - C15DPL100 - FRER - DIN rail / Modbus RTU / with built-in communication
Three-phase electric energy meter - C15DPL100 - FRER - DIN rail / Modbus RTU / with built-in communication
Three-phase electric energy meter - C15DPL100 - FRER - DIN rail / Modbus RTU / with built-in communication - image - 2
Three-phase electric energy meter - C15DPL100 - FRER - DIN rail / Modbus RTU / with built-in communication - image - 3
Three-phase electric energy meter - C15DPL100 - FRER - DIN rail / Modbus RTU / with built-in communication - image - 4
Add to favorites
Compare this product
Go to the FRER website for more information

Characteristics

Type
three-phase
Assembly
DIN rail
Other characteristics
Modbus RTU, with built-in communication, with LCD display, multi tariff
Voltage

Max.: 400 V

Min.: 400 V

Primary current

Max.: 100 A

Min.: 100 A

Description

Product overview
  • Active energy meter with double tariff function for industrial and commercial installations
  • Direct 3-phase measurement suitable for unbalanced 3-4 wire systems
  • LCD display for clear readings
  • Designed for 400 V systems with direct input up to 100 A
  • Compact modular design: 6 DIN modules


Key features
  • Double tariff metering (two tariffs)
  • Direct current input up to 100 A
  • Suitable for 3-phase unbalanced loads (3-4 wire)
  • LCD interface for local reading
  • DIN-rail mounting, 6-module width


Technical specifications
  • Model: C15DPL100
  • Function: Active energy measurement
  • Tariffs: Double tariff
  • Phases: 3-phase (3-4 wire, unbalanced)
  • Nominal voltage: 400 V
  • Current input (direct): 100 A
  • Mounting width: 6 DIN modules
  • Display: LCD
  • Communication: Modbus RTU (protocol available)


Documentation
  • Datasheet
  • User manual
  • Communication protocols — Modbus RTU
  • Available options
  • DWG technical drawing
  • PDF technical drawing
