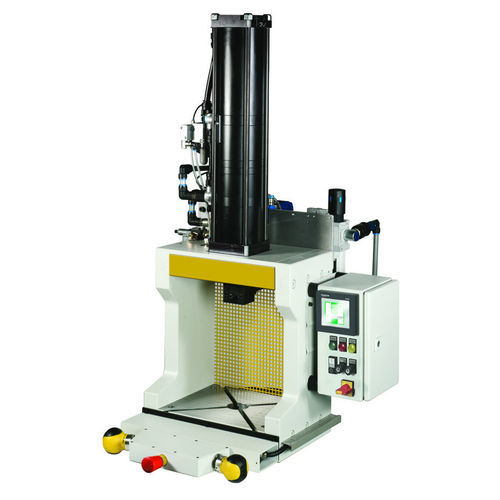

Hydro-pneumatic press 300 HPPVH-frame
Add to favorites
Compare this product
Characteristics
- Operation
- hydro-pneumatic
- Structure
- H-frame
- Force
300 kN
- Stroke
50 mm
(1.969 in)- Max. pressure
6 bar
(87 psi)- Weight
420 kg
(926 lb)- Overall width
Min.: 38 cm
(15 in)Max.: 38 cm
(15 in)- Overall height
Min.: 34 cm
(13 in)Max.: 34 cm
(13 in)
Description
Dimension table
A2: 786
B: 786
C: 601
D: 380
E: 165
X: 338
Y: 1486
Technical data
Accessories / Supplies
Accessories
Characteristics / Technical summary
A2: 786
B: 786
C: 601
D: 380
E: 165
X: 338
Y: 1486
Technical data
- Press type: H-frame hydro-pneumatic presses
- Operation: Control (optional)
- Installation height: 338 mm
- Installation width: 380 mm
- Stroke / power stroke: 50 mm / 6 mm (options available)
- Pressing force (power stroke): 300 kN
- Pressing force (approach): 11 kN
- Pull-out force (return stroke): 10 kN
- Force generation: Hydropneumatic cylinder
- Operating pressure: 6 bar
- Location bore: Ø 32 H7
- Clamped piece: Removable clamped piece
- Twist-free guide: Pillar guide
- Connection hose: 1/2''
- Two-hand safety control ZS08: Optional
- Two-hand safety control SpiceFlex: Optional
- Standard color: RAL 7035
- Weight: 420 kg
Accessories / Supplies
- Base: X1 = 50 mm stroke with 6 mm power stroke
- Base: X1 = 100 mm stroke with 6 mm power stroke
- Base: X1 = 50 mm stroke with 12 mm power stroke
- Base: X1 = 100 mm stroke with 12 mm power stroke (custom stroke length on request)
Accessories
- Two-hand safety control ES07
- SpiceFlex modular
- SE Series for simple two-hand safety control
- Wired foot switch with plug connection for SpiceFlex / D-Con
- Two-hand safety control ZS08
Characteristics / Technical summary
- Model series: HPPV
- Press force (power stroke): 300 kN
- Stroke (total / power stroke): 50 mm / 6 mm (optional: 100 mm total; 12 mm power stroke)
- Operating pressure: 6 bar
- Location bore: Ø 32 H7
- Weight: 420 kg
- Guide type: Pillar guide (twist-free)
- Clamping: Removable clamped piece
- Connection: 1/2'' hose
- Control options: ZS08, SpiceFlex (optional)
- Standard colour: RAL 7035
