Hydro-pneumatic press 150 HPPV

joiningfor productionfor industrial applications

Overview

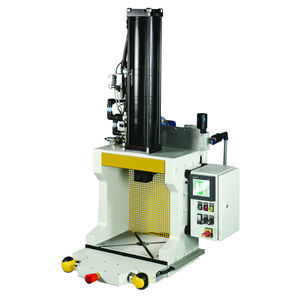

H-frame hydro-pneumatic press, model presented with 150 kN pressing force. Suitable for industrial production and assembly applications requiring high pressing force with hydropneumatic force generation. Control options and safety configurations are available to integrate into production lines.

Dimension table
A2: 756
B: 720
C: 522
D: 353
E: 150
X: 303
Y: 1207

Available base variants

• X1 = 50 mm stroke with 6 mm power stroke
• X1 = 100 mm stroke with 6 mm power stroke
• X1 = 50 mm stroke with 12 mm power stroke
• X1 = 100 mm stroke with 12 mm power stroke, custom stroke length on request

Accessories (examples)

• Two-hand safety control ES07
• SpiceFlex modular
• SE Series for simple two-hand safety control
• Wired foot switch with plug connection for SpiceFlex / D-Con
• Two-hand safety control ZS08

Notes
Download area contains technical packages and ZIP files for different configurations (variants with ZS07 or SpiceFlex, and different stroke/power stroke combinations).

Technical specifications

• Model/Series: HPPV
• Press type: H-frame hydro-pneumatic presses
• Operation: Control (optional)
• Installation height: 303 mm
• Installation width: 353 mm
• Stroke / power stroke: 50 mm / 6 mm (optional 12 mm and other stroke lengths on request)
• Pressing force (power stroke): 150 kN
• Pressing force (approach): 6.5 kN
• Pull-out force (return stroke): 6.2 kN
• Force generation: Hydropneumatic cylinder
• Operating pressure: 6 bar
• Locating bore: Ø 25 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Pillar guide
• Connection hose: 1/2''
• Two-hand safety control ZS08: Optional
• Two-hand safety control Spice Flex: Optional
• Standard color: RAL 7035
• Weight: 420 kg
