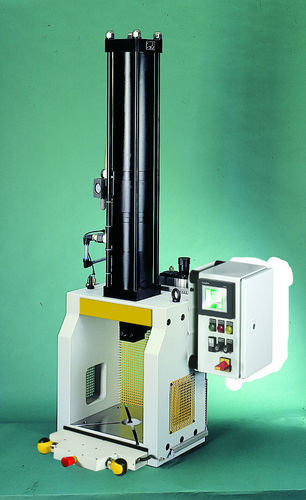

Hydro-pneumatic press 150 HPPS

trimmingformingjoining

Product overview
The HPPS is an H-frame hydro-pneumatic press delivering a 150 kN pressing force (power stroke). It is designed for controlled, repeatable pressing operations in industrial production lines and assembly cells.

Applications

• Press-fitting, broaching and staking
• Riveting, clinching and joining operations
• Component assembly and trimming
• Low-stroke high-force forming tasks

Dimension table
A2: 756
B: 720
C: 522
D: 353
E: 150
X: 303
Y: 1207

Base options

• X1 = 50 mm stroke with 6 mm power stroke
• X1 = 100 mm stroke with 6 mm power stroke
• X1 = 50 mm stroke with 12 mm power stroke
• X1 = 100 mm stroke with 12 mm power stroke (custom stroke length on request)

Accessories

• Wired foot switch with plug connection for SpiceFlex / D-Con
• Two-hand safety control ZS08
• Two-hand safety control ES07
• SpiceFlex modular
• SE Series for simple two-hand safety control

Technical specifications

• Press type: H-frame hydro-pneumatic press
• Operation: Control (optional)
• Installation height: 303 mm
• Installation width: 353 mm
• Stroke / power stroke: 50 mm / 6 mm (options possible)
• Pressing force (power stroke): 150 kN
• Pressing force (approach): 6.5 kN
• Pull-out force (return stroke): 6.2 kN
• Force generation: Hydropneumatic cylinder
• Operating pressure: 6 bar
• Location bore: Ø 25 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Pillar guide
• Connection hose: 1/2''
• Two-hand safety control ZS08: Optional
• Two-hand safety control Spice Flex: Optional
• Standard color: RAL 7035
• Weight: 420 kg

Ordering information
Optional strokes, safety controls and modular control packages are available on request. Provide required stroke length, control option and accessories when ordering.
