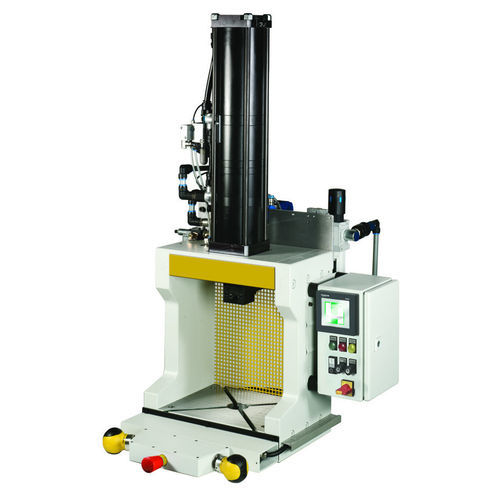

Hydro-pneumatic press 500 HPPV

H-frame

Product
H-frame hydro-pneumatic press with 500 kN pressing force. This product page presents dimensional drawings, available stroke and power-stroke variants, and optional control and safety equipment.

Dimension table
A2: 826
B: 871
C: 670
D: 450
E: 185
X: 360
Y: 1660

Stroke variants

• X1 = 50 mm stroke with 12 mm power stroke
• X1 = 100 mm stroke with 12 mm power stroke (custom stroke length on request)
• X1 = 50 mm stroke with 6 mm power stroke
• X1 = 100 mm stroke with 6 mm power stroke

Accessories

• SE Series for simple two-hand safety control
• Wired foot switch with plug connection for SpiceFlex / D-Con
• Two-hand safety control ZS08
• Two-hand safety control ES07
• SpiceFlex modular

Technical specifications

• Press type: H-frame hydro-pneumatic press
• Operation: Control (optional)
• Installation height: 360 mm
• Installation width: 450 mm
• Stroke / power stroke: 50 mm / 6 mm (options possible) — alternative stroke variants available (50 mm / 12 mm, 100 mm / 6 mm, 100 mm / 12 mm)
• Pressing force (power stroke): 500 kN
• Pressing force (approach): 14 kN
• Pull-out force (return stroke): 13 kN
• Force generation: Hydropneumatic cylinder
• Operating pressure: 6 bar
• Location bore: Ø 40 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Pillar guide
• Connection hose: 1/2"
• Two-hand safety control ZS08: Optional
• Two-hand safety control Spice Flex: Optional
• Standard color: RAL 7035
• Weight: 520 kg
